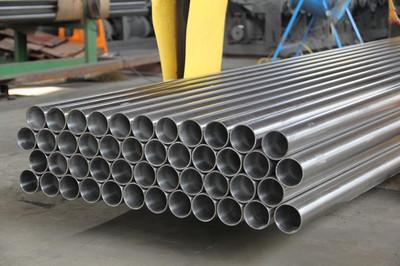

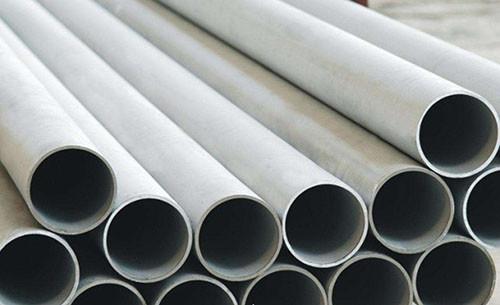

0.5mm - 60mm Thickness SS Stainless Steel Metal Pipe Gas and Petroleum Production
0.5mm - 60mm Thickness SS Stainless Steel Metal Pipe Gas and Petroleum Production
0.5mm - 60mm Thickness SS Stainless Steel Metal Pipe Gas and Petroleum Production
0.5mm - 60mm Thickness SS Stainless Steel Metal Pipe Gas and Petroleum Production
Specifications
Brand Name :
TONGMAO
Model Number :
SS Steel Pipes
Certification :
ISO9001 MTC
Place of Origin :
China
MOQ :
3tons
Price :
US $1,200-1,800/ Ton
Payment Terms :
L/C, T/T
Supply Ability :
1000tons/year
Delivery Time :
7-15days
Packaging Details :
Standard Packing
Diameter :
3-480mm
Thickness :
0.12 ----1.50mm
Surface Finish :
2b/8K/Mirror/No.1
Grade :
304L, 304h, 309, 309S, 310 etc
Surface Treatment :
Polished
Color :
Sliver
Description

0.5mm - 60mm Thickness SS Stainless Steel Metal Pipe Gas and Petroleum Production

Product Name Stainless steel pipe
Type Cold Drawn or Hot Rolled
Thickness 0.1-300mm
Width 1000, 1219, 1500, 2000, 2500, 3000mm etc.
Length 1000, 1500, 2438, 3000, 5800, 6000, 9000, 12000mm etc.
Standard ASTM JIS AISI GB DIN EN
Surface Finished BA, 2B, NO.1, NO.4, 4K, HL, 8K
Application It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture,
and ship components.
It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts,
springs, and screen mesh etc. .
Certification CE, ISO, SGS, BV
Technique Hot rolled or cold drawing
Edge Mill Edge / Slit Edge
Quality SGS Inspection
Grade(ASTM UNS) 201 202 301 304 304L 321 316 316L 317L 347H 309S 310S 904L S32205 2507 254SMOS 32760 253MA N08926 etc.
Grade (EN) 1.4301, 1.4307, 1.4541, 1.4401, 1.4404 ,1.4571, 1.4438, 1.4539, 1.4547, 1.4529, 1.4562, 1.4410, 1.4878, 1.4845, 1.4828, 1.4876,
2.4858, 2.4819
Main market Asia/Europe/ South America
Delivery time Within 7-10 Working Days
Port of Loading Qingdao, China
Price Terms CIF CFR FOB EX-WORK
Export Packing Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package
Supply Ability 5000 Ton/Tons per Month
Payment Terms T/T L/C and Western Union etc.
Chemical composition
Grade C Si Mn Cr Ni
304 ≤0.07 ≤1.00 ≤2.0 18.00~20.00 8.00~10.50
304L ≤0.030 ≤1.00 ≤2.0 18.00~20.00 9.00~13.00
310S ≤0.08 ≤1.00 ≤2.0 24.00~26.00 19.00~22.00
316 ≤0.08 ≤1.00 ≤2.0 16.00~18.00 10.00~14.00
316L ≤0.03 ≤1.00 ≤2.0 16.00~18.00 12.00~15.00
321 ≤0.08 ≤1.00 ≤2.0 17.00~19.00 9.00~13.00
904L ≤0.02 ≤1.00 ≤2.0 19.00~23.00 23.00~28.00
2205 ≤0.03 ≤1.00 ≤2.0 22.00~23.00 4.5~6.5
2507 ≤0.03 ≤0.08 ≤1.20 24.00~26.00 6.00~8.00

304L stainless steel chemical composition (%)

C: ≤0.03,

Silicon Si: ≤1.0,

Mn: ≤2.0,

Chromium Cr: 18.0 ~ 20.0,

Ni: 9.0 ~ 12.0,

Sulfur S: ≤0.03,

Phosphorus P: ≤0.045;

Mechanical properties of

Mechanical properties of 304L stainless steel:

Yield strength (N/mm2) ≥205

Tensile strength ≥520

Elongation (%) ≥40

Hardness HB ≤187 HRB≤90 HV ≤200 Density 7.93 g·cm-3

Specific heat c (20 ℃) 0.502 j. (g · c) - 1

Thermal conductivity λ/W(m·℃)-1 (at the following temperature /℃)

20 100 500

12.1 16.3 21.4

Linear expansion coefficient α/(10-6/℃) (at the following temperatures /℃)

20 ~ 100 20 ~ 200 20 ~ 300 20 ~ 400

16.0 16.8 17.5 18.1

Resistivity 0.73 ω ·mm2·m-1

Melting point 1398 ~ 1420℃

0.5mm - 60mm Thickness SS Stainless Steel Metal Pipe Gas and Petroleum Production
