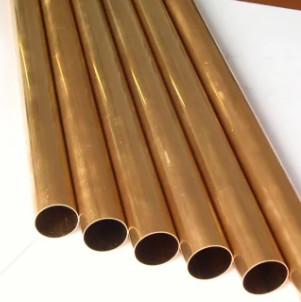

1/2 1/4 3/8 5/8 Inch Outer Dia Copper Pipe for Air Conditioning And Refrigeration
1/2 1/4 3/8 5/8 Inch Outer Dia Copper Pipe for Air Conditioning And Refrigeration
1/2 1/4 3/8 5/8 Inch Outer Dia Copper Pipe for Air Conditioning And Refrigeration
1/2 1/4 3/8 5/8 Inch Outer Dia Copper Pipe for Air Conditioning And Refrigeration
Specifications
Brand Name :
Tongmao
Model Number :
Seamless Copper Pipe
Certification :
IS9001
Place of Origin :
China
MOQ :
3 Tons
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 Tons - 1 Month
Delivery Time :
5-15 Working Days
Packaging Details :
Sea Worth Packaging or Client's Request
Name :
Seamless Copper Pipe
Standard :
ASTM, JIS, AISI, EN, GB, DIN, API, BS, CE, ISO
Grade :
C10200, C10300, C10800, C12000, C12200
Application :
Aviation, Aerospace, Ships, Military Industry, Metallurgy, Electronics, Electrical, Mechanical, Transportation, Construction And Other Fields Of The National Economy
Length :
1000mm ~ 12000mm
Cu :
99.99%
Description

1/ 2 1/ 4 3/ 8 5/8 Inch Outer Diameter Copper Pipe Air Conditioning And Refrigeration Copper Capillary Pipes

Production description

Item Copper tube ,Brass tube,Bronze tube
Type Straight copper pipe,Pancake coil copper pipe,Capillary copper pipe


Standard		 GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395,
ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc



Material		 T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,
TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,
TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,
C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,
C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000,
C71500,C71520,C71640,C72200,etc
Shape Round,Square,Rectangular,Oval,half-round
Round OD:2-914mm (1/16"-36") WT:0.2-120mm(SCH5S-SCH160S)
Square Size:2*2-1016*1016mm(1/16"-40") WT:0.2-120mm
Rectangular Size:2*4-1016*1219mm(1/16"-48") WT:0.2-120mm
Length 1m,2m,3m,6m,or as required
Hardness 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
Surface mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required




Application		 1. Pancake Coil for ACR, General Engineering Applications
2. LWC Coil for ACR, General Engineering Applications
3. Straight Copper Tubes for ACR and Refrigeration
4. Inner-grooved copper tube for ACR and Refrigeration
5. Copper Pipe for Transportation System of water, gas and oil
6.PE-coated copper tube for water/gas/oil transportation system
7.Semi-finished Copper tube for industrial applications

=====================================================================================

Packaging & Delivery

Packing with Plastic Mat, Waterproof Paper , drying agent/desiccant and plastic cap .
1) For light ,short tubes ,we use exporting wooden case
2)For heavy, long tubes ,we use iron frame wooden case
3)On the top of the package ,we weld more square steel to protect the package from damage during the sea or air shipment
Shanghai, Ningbo, Shenzhen,Qingdao,Any port in China as per your request
Lead Time :
5-30 days after getting your payment/as per your order quantity


=====================================================================================
Mark
Type
typical appearance
Anti-corrosion time
A
Copper tube
Bright or light blue
6-8h
B
White zinc tube
Rainbow and white
24-36h
C
Color zinc tube
Yellow rainbow
72-96h
D
Olive green tube
Olive green or bronze color
96-144h
E
PVF tube(mainland)
Black
≥1000h
PVF tube(abroad)
3000-5000h


=====================================================================================

Copper Straight Pipe Tube(Outer Diameter * Wall Thickness)
OD * WT(mm) OD * WT(mm) OD * WT(mm) OD * WT(mm)
2*0. 5 3*0. 5 3*1 4*0. 5
4*1 5*0. 5 5*1 6*0. 5
6*1 6*1. 5 6*2 7*0. 5
7*1 7*1. 5 7*2 8*0. 5
8*1 8*1.5 8*2 9*0. 5
9*1 9*1.5 9*2 10*1
10*1. 5 10*2 11*1 11*1.5
11*2 12*1 12*1. 5 12*2
13*1 13*1. 5 13*2 14*1
14*1.5 14*2 15*1 15*1. 5
15*2 16*1 16*1.5 16*2
17*1 17*1.5 17*2 18*1
18*1. 5 18*2 19*1 19*1.5
19*2 20*1 20*1.5 20*2
21*1 21*1.5 21*2 22*1
22*1.5 22*2 23*1.5 24*1
24*1.5 24*2 25*1 25*1.5
25*2 27*1 27*1.5 27*2
28*1 28*1.5 28*2 29*1
29*1.5 29*2 30*1 30*1.5
30*240*3 40*5 42*1.5 45*1.5
50*1.5 54*1.5 57*39 60*4
60*5 60*6 67*2. 5 76*2
89*2 89*2. 5 108*2. 5 133*2. 5
Copper Coil Pipe (Outer Diameter * Wall Thickness)
OD * WT(mm) OD * WT(mm) OD * WT(mm) OD * WT(mm)
2*0. 5 3*0. 5 4*0. 5 5*0. 5
6*1 6.35*0. 6 6. 35*0. 8 6. 35*1
8*1 9. 52*0. 5 9. 52*0. 8 9. 52*1
10*1 12*1 12. 7*0. 8 12. 7*1
15. 88*0. 5 15. 88*0. 8 15. 88*1 19. 05*0. 5
19. 05*0. 8 19. 05*1 22*2 22*2.2

Good and safe Package . we packing very careful protection your goods and samples.
1. HS code for you save cost and time Copper Tube:7411219000;Fin Tube:84199090; Heat Exchanger:8516210000


2.Genernal packing and customized packaging follow you request:		 Packing with Plastic Mat, Waterproof Paper , drying agent/desiccant and plastic cap .
1) For light ,short tubes ,we use exporting wooden case
2)For heavy, long tubes ,we use iron frame wooden case
3)On the top of the package ,we weld more square steel to protect the package from damage during the sea or air shipment
3.FOB cost reference USD1-10/M


=====================================================================================



=================================================================================

Product description:

Use: Mainly used for air conditioning installation and connection pipe; no leakage, no crack under the pressure of work.It can also be used in chemical industry, medical treatment, drinking water and other areas as the use of pipelines. Orders need to determine the length of single piece .

===========================================================================

Our advantages:

Smooth incision :Smooth,refuse rough.no burrs.
