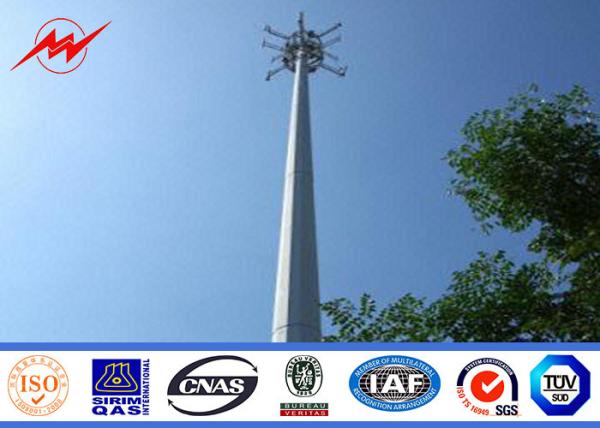

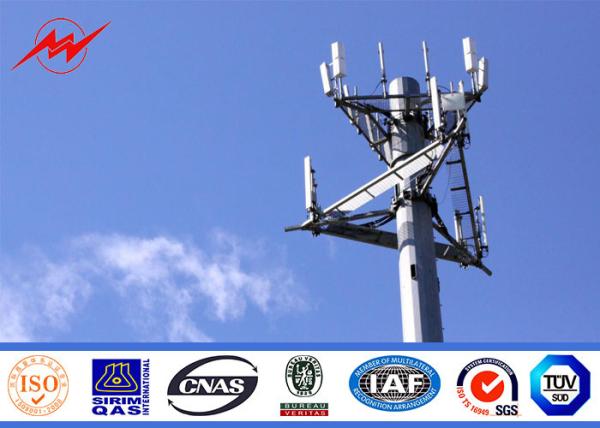

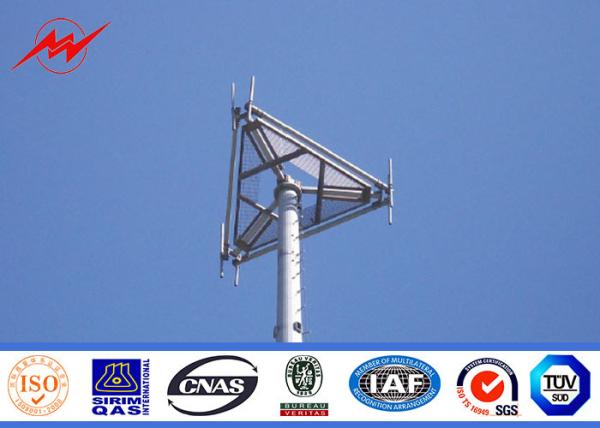

132kv 30 Meter Mono Pole Tower For Mobile Transmission Telecommunication
132kv 30 Meter Mono Pole Tower For Mobile Transmission Telecommunication
132kv 30 Meter Mono Pole Tower For Mobile Transmission Telecommunication
132kv 30 Meter Mono Pole Tower For Mobile Transmission Telecommunication
132kv 30 Meter Mono Pole Tower For Mobile Transmission Telecommunication
132kv 30 Meter Mono Pole Tower For Mobile Transmission Telecommunication
132kv 30 Meter Mono Pole Tower For Mobile Transmission Telecommunication
132kv 30 Meter Mono Pole Tower For Mobile Transmission Telecommunication
Specifications
Brand Name :
MilkyWay
Model Number :
Mono Pole Tower
Certification :
ISO9001/BV/
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
300pcs per day
Delivery Time :
20 working days after received your payment
Packaging Details :
As customer request
Product Name :
Antenna Tower Telecommunication Steel Mono pole Tower Designed as Pine Tree
Application :
Communication Distrubution
Surface treatment :
hot dip galvanization
Dimension torlance :
+- 2%
Welding standard :
AWS D 1.1
Galvanization standard :
ASTM A 123
Material :
Q345
Description

132kv 30 Meter Mono Pole Tower For Mobile Transmission Telecommunication

Specifications:

Suit for

Communication distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Torlance of the dimension

+- 2%

Power

10 KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg applied to 50cm from the to pole

Marks

Name plate through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,inner flange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour . 30 m /s

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Row material test → Cutting →Molding or bending →
Welding (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data

Description:
The communication tower is used for the communication distribution.

132kv 30 Meter Mono Pole Tower For Mobile Transmission Telecommunication

The material we use is from Baosteel.According to the different strength request,we can use the Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.

More Pictures:

132kv 30 Meter Mono Pole Tower For Mobile Transmission Telecommunication

Company Introduction:


Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.

132kv 30 Meter Mono Pole Tower For Mobile Transmission Telecommunication
