30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System
30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System
30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System
30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System
30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System
30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System
30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System
30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System
Specifications
Brand Name :
MilkyWay
Model Number :
High Mast Pole
Certification :
ISO9001/BV/
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
300pcs per day
Delivery Time :
20 working days after received your payment
Packaging Details :
As customer request
Product Name :
High Mast Pole
Application :
Airport lighting
Surface treatment :
hot dip galvanization powder painting
Dimension torlance :
+- 2%
Galvanization standard :
ASTM A 123
Material :
Q235
Description

30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System

Description:

Our Floodlighting pole can be appied to the lighting of airport, sea port, plaza, stadium. And we have different headframe design for the the mounting for different quantity of floodlight
Designed and manufacutred for durability, corrosion resistance and visual appeal.

30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System

Specifications:

Height

From 20m to 55m

Suit for

Airport ,seaport,plaza,stadium ,square,highway,
street way etc

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Lamp power

20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz

Torlance of the dimenstion

+- 2%

Electroshock resistant protective grade

Grade Ⅰ

The casing anti-corrosion performance

Class Ⅱ

Working atmosphere of lighting fixture

-35 ℃~+45 ℃

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System

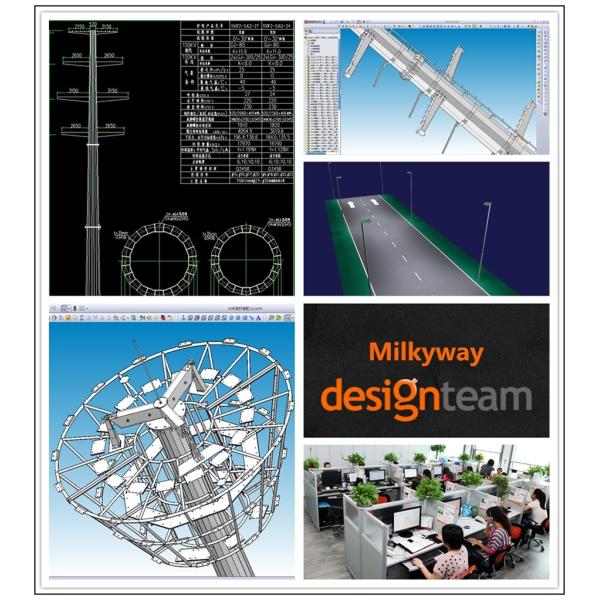

More Photos:

30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System

Company Introduction:


Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
