50 Meters 16 Sides High Mast Lighting Lowering Device With Auto Hoisting System
50 Meters 16 Sides High Mast Lighting Lowering Device With Auto Hoisting System
50 Meters 16 Sides High Mast Lighting Lowering Device With Auto Hoisting System
50 Meters 16 Sides High Mast Lighting Lowering Device With Auto Hoisting System
50 Meters 16 Sides High Mast Lighting Lowering Device With Auto Hoisting System
50 Meters 16 Sides High Mast Lighting Lowering Device With Auto Hoisting System
Specifications
Brand Name :
MilkyWay
Model Number :
High Mast Pole
Certification :
ISO9001/BV/
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
300pcs per day
Delivery Time :
20 working days after received your payment
Packaging Details :
As customer request
Product Name :
High Mast Pole
Application :
Airport lighting
Thickness :
1 mm to 30 mm
Standard :
ISO
Gavanization standard :
ASTM A 123
Welding standard :
AWS D 1.1
Description

50 meters 16 Sides high mast light pole With Aotumatic Hoisting System

Specification: 50 meters 16 Sides high mast light pole With Aotumatic Hoisting System
Type high mast light pole
Shape conical, hexagonal and octagonal
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion -0.02
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section Within 14m once forming without slip joint.
high mast pole suit for city square,wharf,stadium
Option of high mast pole Height from 20m to 35m
Flange mounted or planted type
Production Process of high mast pole Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages

Specifications:
1.Height: 50m
2.Max length per section: 14 m
3.Thickness: 2.5mm ~ 30 mm
4.Shape: Conical or polygongal tapered
5.Material: Q235B/A283 M Gr.C / SS400/S235 JR / St 37-2 / Fe 360
Q345B/A572 M Gr. 50/S355 JR / ST 52-3/Fe 510
6.Lamp Power: 250W ~ 2000W (HPSL / MH)
7.Lifting system:Lifter fixed in the inner of the pole with lifting speed of 3 ~ 5 meter per minute
Euqiped with ectromagnetism brake and break-proof device, manual opeation applied under power cut.
8.Head frame: Our headframe can be designed as per customer requirment to carry camera or industrial antenna.
9.Finish: hot dipgalvanization, blasting, powder coating, painting.
10.Galvanization standard: ASTMA 123 / EN ISO 1461
11.Welding: AWS D 1.1 / BS EN 1011-1, BS EN 1011-2
Design: We have our standard pole with our design, OEM and ODM is also accpetable
Packages: Standard seaworthy
Delivery time: with two weeks after confirm the order.

50 Meters 16 Sides High Mast Lighting Lowering Device With Auto Hoisting System

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 70μm.

Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Di mension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating
,painting →Recalibration →Thread →Packages

50 Meters 16 Sides High Mast Lighting Lowering Device With Auto Hoisting System

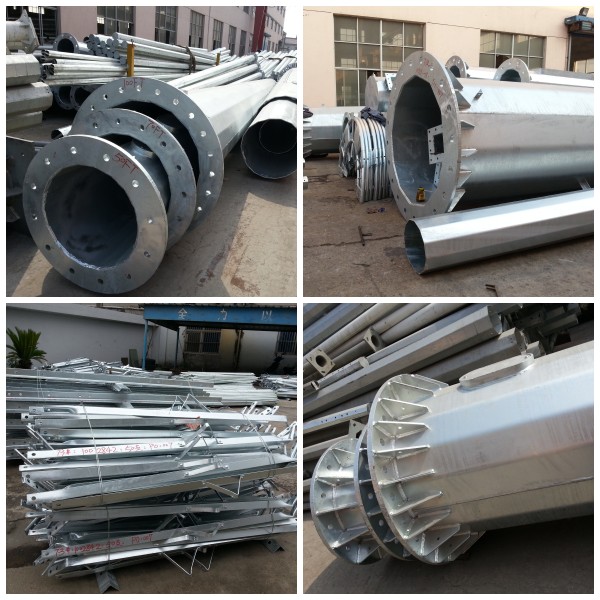

More Photos:

50 Meters 16 Sides High Mast Lighting Lowering Device With Auto Hoisting System

Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.

50 Meters 16 Sides High Mast Lighting Lowering Device With Auto Hoisting System
