Hdg 9m Galvanized Street Light Pole Powder Coating With Cross Arms
Hdg 9m Galvanized Street Light Pole Powder Coating With Cross Arms
Hdg 9m Galvanized Street Light Pole Powder Coating With Cross Arms
Hdg 9m Galvanized Street Light Pole Powder Coating With Cross Arms
Hdg 9m Galvanized Street Light Pole Powder Coating With Cross Arms
Hdg 9m Galvanized Street Light Pole Powder Coating With Cross Arms
Hdg 9m Galvanized Street Light Pole Powder Coating With Cross Arms
Hdg 9m Galvanized Street Light Pole Powder Coating With Cross Arms
Specifications
Brand Name :
MilkyWay
Model Number :
Street Light Poles
Certification :
ISO9001/BV/
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
300pcs per day
Delivery Time :
20 working days after received your payment
Packaging Details :
As customer request
Product Name :
Street Light Poles
Power Supply :
Solar/AC
Welding standard :
AWS D 1.1
Material :
Q345
Life time :
50 years
Dimenstion torlance :
+- 2%
Finish :
HDG
Description

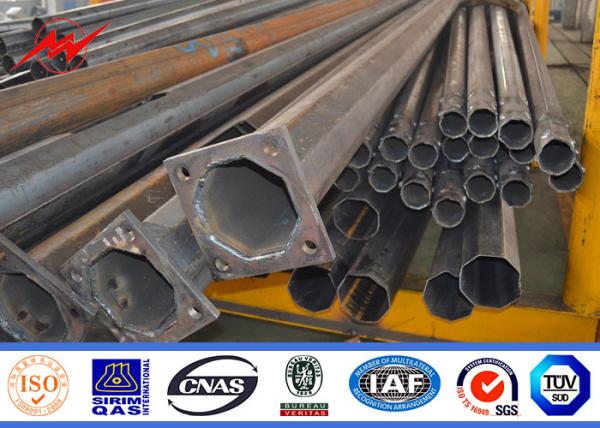

HDG 9m Outdoor Street Light Poles Powder Coating with Cross Arms

Specifications:

Height

From 3 meter to 15 meter

Suit for

Airport, seaport, roadway, etc

Shape

Round conical; Octagonal tapered; Straight square; Tubular stepped;

Shafts are made of steel sheet that folded into required shape and

welded longitudinally by automaticarc welding machine

Material

Q235B or Q345 by , same grade EN44 .SS400

Tolerance of the dimension

According to client’s requirement.

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester

powder or any other standard by client required.

Joint of Poles

Slip joint, flanged connected

Base plate mounted

Base plate is square or round in shape with slotted holes for

anchor bolt and dimension as per customers requirement.

Wind Resistance

Aganist wind pressure of 160Km/h

Certificates

ISO 9001:2008

Length of per section

Within 14 meter once forming

Welding Standard

AWS (American Welding Society ) D 1.1

Thickness

1 mm to 36mm

Production Process

Raw material test → Cutting →bending →Welding (longitudinal )

→Dimension verify →Flange welding →Hole drilling →sample assemble

→ surface clean→ Galvanization or powder coating ,painting →Recalibration

→Packages

Packages

Packing with plastic paper or according to client’s request.

Production Process

Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages

Hdg 9m Galvanized Street Light Pole Powder Coating With Cross Arms

Package:

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.

Hdg 9m Galvanized Street Light Pole Powder Coating With Cross Arms
