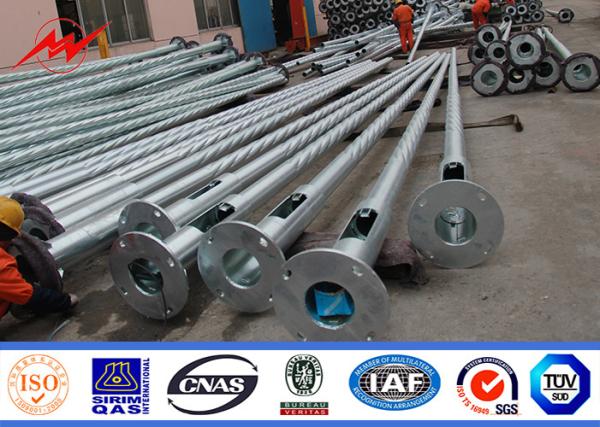

Q345 Q235 Hot Dip Galvanized Double Arm Gi Light Pole 12m
Q345 Q235 Hot Dip Galvanized Double Arm Gi Light Pole 12m
Q345 Q235 Hot Dip Galvanized Double Arm Gi Light Pole 12m
Q345 Q235 Hot Dip Galvanized Double Arm Gi Light Pole 12m
Q345 Q235 Hot Dip Galvanized Double Arm Gi Light Pole 12m
Q345 Q235 Hot Dip Galvanized Double Arm Gi Light Pole 12m
Specifications
Brand Name :
MilkyWay
Model Number :
Street Light Poles
Certification :
ISO9001/BV/
Place of Origin :
China,Jiangsu
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
300pcs per day
Delivery Time :
20 working days after received your payment
Packaging Details :
As customer request
tolerance :
+/-2%
Product Name :
12M Q345 Hot DIP Galvanized Street Light Poles Highway Steel Poles With Double Arm
Color variable :
any color
Payment Terms: :
T/T ,L/C
Application :
road,highway,street,square
safty Facor :
1.8
Description

12M Q345 Hot DIP Galvanized Street Light Poles Highway Steel Poles With Double Arm

Specification:

1. Quality Q345/Q235 steel plate
2. advanced equipent
3. high level technical personnel
4. hot dip galvanization

Drawings:

Q345 Q235 Hot Dip Galvanized Double Arm Gi Light Pole 12m

Type

Street Lamp pole, lamp post . Lamp column

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52

Torlance of dimenstion

-0.02

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Standard

Octagonal tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123

Length of per section

Within 14m once forming without slip joint.

Suit for

Highway
Roadway
Residential subdivisions
Commercial development

Option

Height from 6m to 12m
Flange mounted or planted type
Variable arm length from 0.125m to 3.0m with single or double arm type
Variable spigot size from 35mm to 60mm.

Production Process

Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding

→Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread

→Packages

Q345 Q235 Hot Dip Galvanized Double Arm Gi Light Pole 12m
