3mm 4mm Wall Thickness 9m 12m Electrical Power Pole For Telecommunication
3mm 4mm Wall Thickness 9m 12m Electrical Power Pole For Telecommunication
3mm 4mm Wall Thickness 9m 12m Electrical Power Pole For Telecommunication
3mm 4mm Wall Thickness 9m 12m Electrical Power Pole For Telecommunication
3mm 4mm Wall Thickness 9m 12m Electrical Power Pole For Telecommunication
3mm 4mm Wall Thickness 9m 12m Electrical Power Pole For Telecommunication
3mm 4mm Wall Thickness 9m 12m Electrical Power Pole For Telecommunication
3mm 4mm Wall Thickness 9m 12m Electrical Power Pole For Telecommunication
Specifications
Brand Name :
Milky Way
Model Number :
9m 12m 15m 3mm 4mm Gr65 telecommunication power pole electrical
Certification :
ISO//BV
Place of Origin :
China
MOQ :
one 40HQ
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300 pieces pole per day
Delivery Time :
usually 2 weeks after confirming
Packaging Details :
as per customer request
Material :
Gr65
Style :
galvanization
Design load in kg :
300~ 1000 Kg appliced to 50cm from the to pole
Torlance of dimenstion :
+- 2%
Galvanization standard :
IS2629-1985 ,BS729-1971
Welding standard :
ASTM A 252-1998 or ASTM A 714-1999
Application :
Electric Tower, Energy Supply Pipe, Electric Power Transmission Steel Poles
name :
galvanized steel power pole
Description

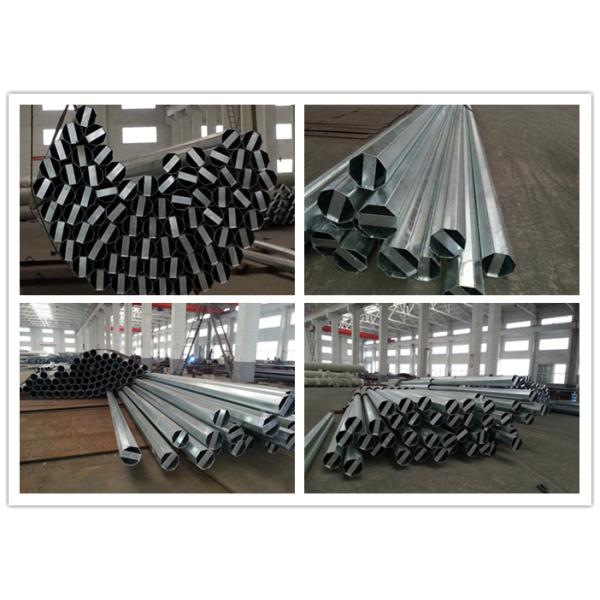

3mm 4mm Wall Thickness 9m 12m Electrical Power Pole for Telecommunication

Pole's height 9m 12m 15m
Type Steel Pole
Shape of pole Polygonal octagonal
Material Steel
Wall thickness 3.0mm 4.0mm
Once forming yes
Welding Welding complies with CSA and AWS, AWS D1.1 standard.
The welders have got corresponding certificate after testing and inspection.
Galvanizing Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002
or American standard ASTM A123.
Voltage 69kv

Packing details:

The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.

All of our material are purchased from famous mill factory to assure the quality A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory; otherwise we have our reason to refuse the material.
Before put into production, all the material must pass the chemical and physical analysis to make sure that they have met the requested strength and component.

3mm 4mm Wall Thickness 9m 12m Electrical Power Pole For Telecommunication

Our Company:

Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on

3mm 4mm Wall Thickness 9m 12m Electrical Power Pole For Telecommunication
