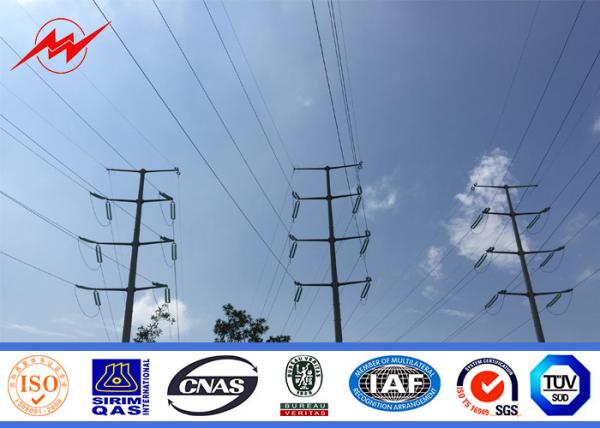

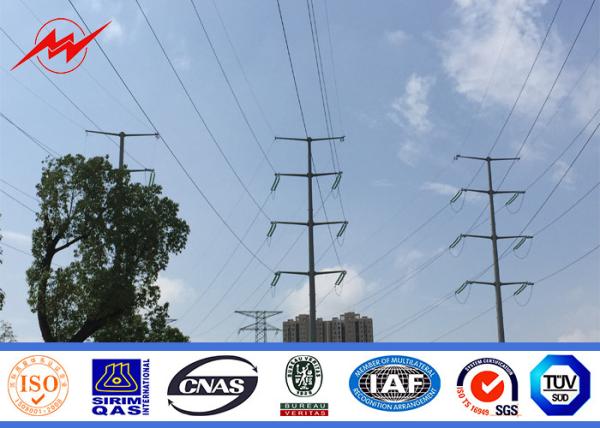

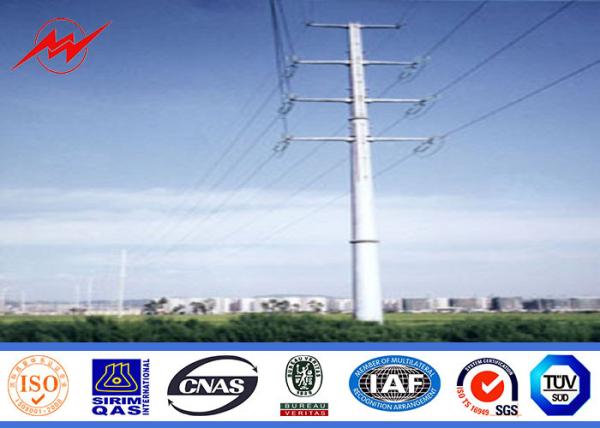

Hot dip galvanized steel poles Steel Utility Pole for 69kv transmission
Hot dip galvanized steel poles Steel Utility Pole for 69kv transmission
Hot dip galvanized steel poles Steel Utility Pole for 69kv transmission
Hot dip galvanized steel poles Steel Utility Pole for 69kv transmission
Hot dip galvanized steel poles Steel Utility Pole for 69kv transmission
Hot dip galvanized steel poles Steel Utility Pole for 69kv transmission
Hot dip galvanized steel poles Steel Utility Pole for 69kv transmission
Hot dip galvanized steel poles Steel Utility Pole for 69kv transmission
Specifications
Brand Name :
Milky Way
Model Number :
Steel Utility Pole
Certification :
/BV/ISO9001
Place of Origin :
Jiangsu,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
30,000 Tons per month
Delivery Time :
10-30 working days after received your payment
Packaging Details :
As customers' request
Type :
Hot dip galvanized steel poles Steel Utility Pole for 69kv transmission
Shape :
Round,Conical
Material Grade :
Q235,Q345,Gr65
Thickness :
2.5mm-16mm
Surface Finished :
Hot Dip Galvanized
Standard :
/BV/ISO9001
Description

Cheapest telecom tower Steel Utility Pole for 120kv overheadline project

Material:

Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.

China-GB

America-ASTM

Equivalent

Q235

Grade D

SS400,S235JO

Q345

Grade50[345]

S355JR

Q420

Grade60[415]

S420NL

Q460

Grade65[450]

S460NL

Hot dip galvanized steel poles Steel Utility Pole for 69kv transmission

Features:

Pole’s height

All available

Type

Straight Pole ,Tensile Pole ,Turn Pole,etc

Shape of pole

Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc

Crossarm

Single or double crossarm, dimension as per customers’ requirement

Material

Steel materials conform to ASTM A36,

Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50

Q460 equivalent to S460, Grade 65

Wall thickness

≥2.5mm

Once forming

13m without joint

Welding

Welding complies with CSA and AWS, AWS D1.1 standard.

The welders have got corresponding certificate after testing and inspection.

Joint

Joint with insert mode, flange mode.

Base plate mounted

Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanizing

Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 orAmerican standard ASTM A123.

Voltage

10KV~550KV

Certificates

ISO9001-2008 , AAA credit rating, etc

Protection

Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area

Hot dip galvanized steel poles Steel Utility Pole for 69kv transmission

Hot dip galvanized steel poles Steel Utility Pole for 69kv transmission

1.Prices conditions

Price can be FOB, CIF ,EXW, or With taxes.


2.What will be the delivery time and what will be the mode of payment?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.
50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction,Letter of credit,Paypal,Western Union.


3.Shipment will be over sea or by air?
Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn’t too heavy for the transportation,
and oversea for led lights,and can be customized by your requirements.


4.Could you please send me the sample for the same. So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.


5.Will there be any contract for this business or trade?
Yes, there is a normal contract before the order is placed.
