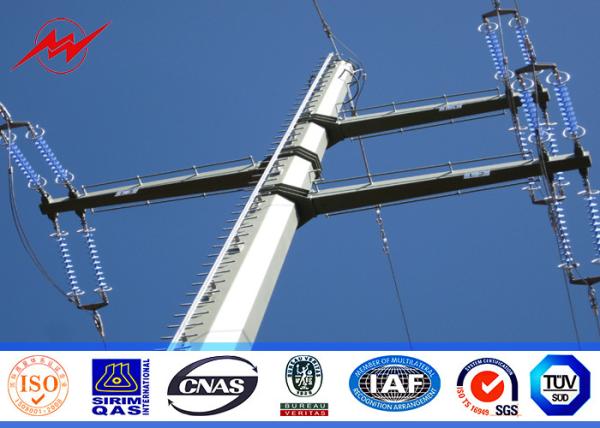

8M powder coating Electrical Power Pole for distribution and transmission line

Flexibility, ease of installation, maintenance free, reliability . These are just some of the advantages provided by our galvanized steel monopoles over concrete or lattice structures. We design, manufacture and supply any tapered steel poles for Transmission networks.

Quick Description

Electrical Transmission and distribution pole

For Electrical transmission and distribution structures

Round or conical shape with height from 8m to 15m

With hot dip galvanize or painted finish

Technical Data Sheet(F=6.5KN)

Connection Type

1. Joint Type

2. Flange Type

Standard Accessory

-Top plate

-Base plate

-Bottom strip

-Standard hole

-Climbing rung

-Anchor bolt

-Bitumen protection

-Painted marking

-Removable ladder

Available Foundation Types

Direct Embedment

Anchor Bolt/Base Plate

Vibratory Steel Caisson

Available Finishes

Galvanized per ASTM A123

Paint over galvanized,paint over black steel

Powder Coating

Standard Features of in-ground and base plate mounted

In-Ground Mounted:

12-sided pole shaft

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the nominal ground line

M24 nut 250mm above the nominal ground line (to assist lifting)

Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line

Anti-sink straps

Hot dip galvanised finish

Base Plate Mounted:

12-sided pole shaft (40kN to 80kN)

16-sided pole shaft (100kN & 120kN)

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the pole base

Two lifting gussets on the base plate

Anchor bolts, templates, nuts & washers

Hot dip galvanised finish

Product Gallery

The information to inquiry or purchase

-Steel pole height and force

-Cross arm type and length,the position to install in the steel pole

-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)

-Safety factor of the steel pole

-Wind speed

-Type of climbing rung

-Destination port

-Other.
