11m 14m Customizable Electrical Power Pole for Different Customer Requirements
11m 14m Customizable Electrical Power Pole for Different Customer Requirements
11m 14m Customizable Electrical Power Pole for Different Customer Requirements
11m 14m Customizable Electrical Power Pole for Different Customer Requirements
11m 14m Customizable Electrical Power Pole for Different Customer Requirements
11m 14m Customizable Electrical Power Pole for Different Customer Requirements
11m 14m Customizable Electrical Power Pole for Different Customer Requirements
11m 14m Customizable Electrical Power Pole for Different Customer Requirements
Specifications
Brand Name :
milky way
Model Number :
yin-he
Certification :
ISO BV
Place of Origin :
Jiangsu
MOQ :
1 container
Price :
USD 130-180/piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pieces per month
Delivery Time :
always 2 weeks
Packaging Details :
Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Height :
20-40m
Thickness :
1-30mm
Design :
against 8 grade of earthquake
Color :
white ,silver
Welding :
AWS D1.1
Type :
Flange type/burial
Tolerance of dimension :
+- 2%
Description

1. Quality Q345/Q235 steel plate
2. advanced equipent
3. high level technical personnel
4. hot dip galvanization

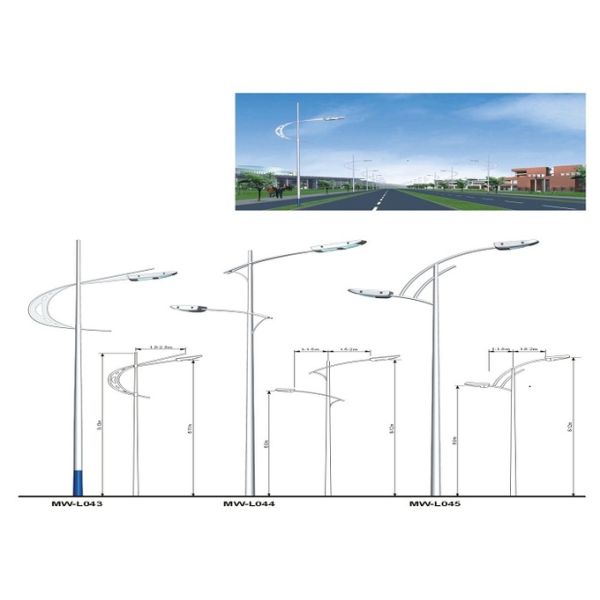

Drawings:

11m 14m Customizable Electrical Power Pole for Different Customer Requirements

Type Street Lamp pole, lamp post . Lamp column
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion -0.02
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard Octagonal tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section Within 14m once forming without slip joint.
Suit for Highway
Roadway
Residential subdivisions
Commercial development
Option Height from 6m to 12m
Flange mounted or planted type
Variable arm length from 0.125m to 3.0m with single or double arm type
Variable spigot size from 35mm to 60mm.
Production Process

Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding

→Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread

→Packages

11m 14m Customizable Electrical Power Pole for Different Customer Requirements
