Specifications
Brand Name :
Joyruns
Model Number :
6mm to 600mm
Certification :
ISO9000
Place of Origin :
CHANGZHOU, CHINA
MOQ :
5 tons per size
Price :
Negotiable
Payment Terms :
TT OR LC
Supply Ability :
5000T PER MONTH
Delivery Time :
30DAYS
Packaging Details :
Plastic packing, oiling, wooden box
Length :
Max length 24M
Type :
Seamless and welded austenitic stainless steel pipe
OD. Range :
6mm – 600mm
Grade :
TP304/SUS304/SUS306
Wall thickness :
1mm-40mm
Standard :
ASTM (ASME) A213/JIS3448
Description

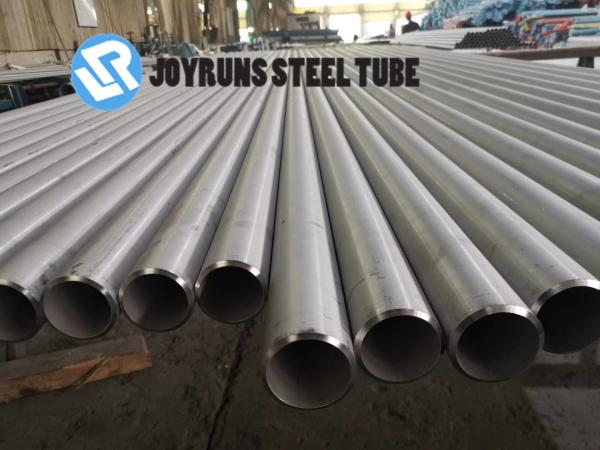

SUS316 JIS3448 Cold drawing Seamless Stainless Steel Pipe

Stainless steel pipes for general piping (JIS G 3448) are standardized for building equipment piping (water supply, hot water supply, drainage, cold/hot water, firewater, and other piping), and are thinner than conventional stainless steel pipes. It is characterized by four types: SUS304, SUS315J1, SUS315J2, and SUS316.
It is recommended that the operating pressure be set to 2MPa or less in view of the consistency of the pressure resistance performance of the joint system.

Standard: JIS G3448

Austenitic Steel: SUS 304 TPD, SUS 315J1TPD, SUS315J2TPD, SUS316TPD

Chemical composition

Type symbol C Si Mn P S Ni Cr Mo Cu
SUS304TPD Max 0.08 Max 1.00 Max 2.00 Max 0.045 Max 0.030 8.00-10.50 18.00-20.00 ―A) ―A)
SUS315J1TPD 0.5-2.50 8.50-11.50 17.00-20.50 0.50-1.50 0.50-3.50
SUS315J2TPD 2.50-4.00 11.00-14.00 17.00-20.50 0.50-1.50 0.50-3.50
SUS316TPD Max 1.00 10.00-14.00 16.00-18.00 2.00-3.00 ―A)
