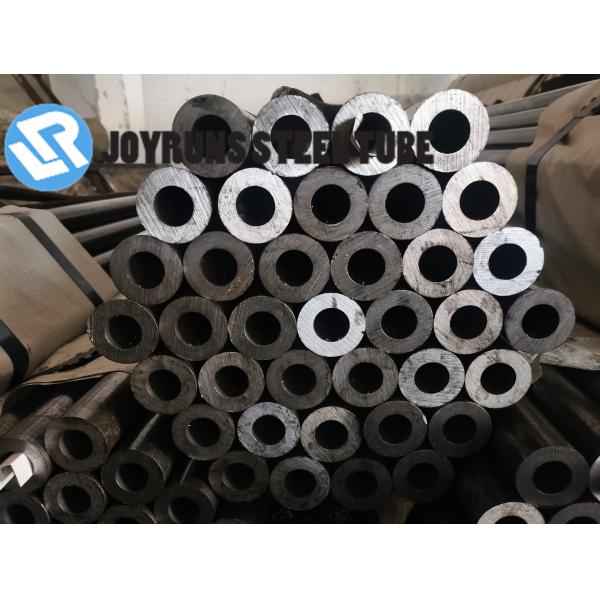

ASTM A519 Grade 1035 Carbon Alloy Precision Mechanical Steel Tubing 44.45*3.05mm
ASTM A519 Grade 1035 Carbon Alloy Precision Mechanical Steel Tubing 44.45*3.05mm
ASTM A519 Grade 1035 Carbon Alloy Precision Mechanical Steel Tubing 44.45*3.05mm
ASTM A519 Grade 1035 Carbon Alloy Precision Mechanical Steel Tubing 44.45*3.05mm
ASTM A519 Grade 1035 Carbon Alloy Precision Mechanical Steel Tubing 44.45*3.05mm
ASTM A519 Grade 1035 Carbon Alloy Precision Mechanical Steel Tubing 44.45*3.05mm
Specifications
Brand Name :
Joyruns
Model Number :
6mm to 137mm
Certification :
ISO9000
Place of Origin :
CHANGZHOU, CHINA
MOQ :
5 tons per size
Price :
Negotiable
Payment Terms :
TT OR LC
Supply Ability :
5000T PER MONTH
Delivery Time :
30DAYS
Packaging Details :
Plastic packing, oiling, wooden box
OD. Range :
6mm – 137mm
Wall thickness :
1mm-20mm
Length :
Max length 12M
Standard :
ASTM A519, 1020,1035,1045
Type :
Seamless Precision Mechanical Tube
Technique :
cold drawing, cold rolled
Description

ASTM A519 Grade 1035 carbon and alloy Seamless Precision Mechanical Steel Tubing

A519 Grade: 1035 seamless tubing is commonly used in applications requiring machining, heat treating, close tolerances, smooth finishes, and/or definite physical properties.
ASTM A519 covers several grades of carbon and alloy steel seamless mechanical tubing. When welding is used for joining the weldable mechanical tube grades, the welding procedure shall be suitable for the grade, the condition of the components, and the intended service.

ASTM A519 SAE1035 The steel used in the mechanical tubing may be cast in ingots or may be strand cast. When steel of different grades is sequentially strand cast, identification of the resultant transition material is required. The seamless tubing is a tubular product made without a welded seam. It is usually manufactured by hot-working steel, and if necessary, by subsequently cold finishing the hot-worked tubular product to produce the desired shape, dimensions and properties

ASTM A519 SAE1035 seamless tubing Chemical Composition (%):

Standard

Grade

Chemical Components (%)

C

Si

Mn

P

S

Mo

Cr

V

ASTM A519

MT1010

0.05-0.15

/

0.30-0.60

≤0.040

≤0.050

/

/

/

MT1015

0.10-0.20

/

0.30-0.60

≤0.040

≤0.050

/

/

/

MT1020

0.15-0.25

/

0.30-0.60

≤0.040

≤0.050

/

/

/

1010

≤0.10

/

0.30-0.50

≤0.040

≤0.050

/

/

/

1020

0.18-0.23

/

0.30-0.60

≤0.040

≤0.050

/

/

/

1035

0.32-0.38

/

0.60-0.90

≤0.040

≤0.050

/

/

/

1045

0.43-0.50

/

0.60-0.90

≤0.040

≤0.050

/

/

/

4130

0.28-0.33

0.15-0.35

0.40-0.60

≤0.040

≤0.040

0.15-0.25

0.8-1.10

/


ASTM A519 1035 Mechanical Properties

Grade Condition MPa Tenslle Point Yield Point Elongation
1020 CW ≥414 ≥483 ≥5%
SR ≥345 ≥448 ≥10%
A ≥193 ≥331 ≥30%
N ≥234 ≥379 ≥22%
1025 CW ≥448 ≥517 ≥5%
SR ≥379 ≥483 ≥8%
A ≥207 ≥365 ≥25%
N ≥248 ≥379 ≥22%
4130 SR ≥586 ≥724 ≥10%
A ≥379 ≥517 ≥30%
N ≥414 ≥621 ≥20%
4140 SR ≥689 ≥855 ≥10%
A ≥414 ≥552 ≥25%
N ≥621 ≥855 ≥20%
  • HR----Hot Rolled
  • CW----Cold Worked
  • SR----Stress Relieved
  • A----Annealed
  • N----Normalized

Dimension Tolerances:

Pipe Type Pipe Sizes Tolerances
Cold drawn OD ≤48.3mm ±0.40mm
WT ≥60.3mm ±1%mm



ASTM A519 Grade 1035 Carbon Alloy Precision Mechanical Steel Tubing 44.45*3.05mm ASTM A519 Grade 1035 Carbon Alloy Precision Mechanical Steel Tubing 44.45*3.05mm

ASTM A519 Grade 1035 Carbon Alloy Precision Mechanical Steel Tubing 44.45*3.05mm ASTM A519 Grade 1035 Carbon Alloy Precision Mechanical Steel Tubing 44.45*3.05mm
