18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive
18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive
18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive
18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive
18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive
18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive
Specifications
Brand Name :
SUSSMAN
Model Number :
SS-FD
Certification :
SGS. CE. ISO
Place of Origin :
China (mainland)
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60 working days after deposit
Packaging Details :
Standard package with film, plastic and steel wire.
Material :
Galvanized steel sheet
material thickness :
1.5mm
Forming stations :
16 stations
Roller material :
45# Steel with quenching 60mm
Dirve system :
Chain
power supply :
380V, 50Hz, 3Phase
Forming speed :
up to10m/ min
Machine Dimension :
7mx0.8mx0.5m
Control system :
PLC with touch screen
Description

Fire Damper Roll Forming Machine

Technical Parameter

Items

Specifications

Material of coil

Material Thickness

1.5mm

Un Coiler

3 tons manual

Forming system

Rolling Speed

About 10m/min

Roller Stations

About 16 stations

Roller Material

Gcr15 coated with chrome

Shaft diameter

65mm

Maim Motor Power

11kw

Pinching motor

2.2kw

Motor cutting Power

7.5kw

Cutting system

Material Of Cutting

CR12mov with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Cutting blades

3 sets

Electrical control system

Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s requirey

Control System

PLC (Panasonic) as list in the note

Weight

About 8 tons

Way Of Drive

1.2 inch chain

Main Components

Machine list

5 ton passive de-coiler

1 set

Leveller

1 set

Punching

4 sets

Main roll forming machine

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

Out table

2 units

Working Flow of Roll Forming Machine

De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive

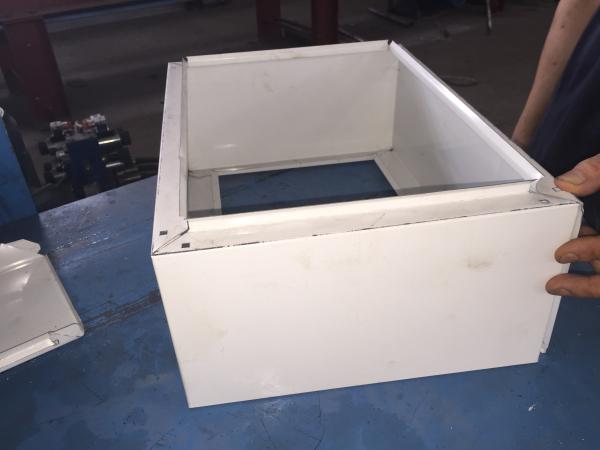

Profile of product

18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive

18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive

18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive

Photo Gallery

18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive

18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive

18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive

18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive

18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive

18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive

Loading pictures

18 Forming Stations Roll Forming Equipment For Fire Damper Production Chain Drive

Company Profile

Sussman Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile

of roll forming machine.

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down

Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products

are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other

construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and

steel production enterprises' growing demands.
