Fully Automatic Deck Floor Roll Forming Equipment 0 - 12 M / Min 28 Roller Stands
Fully Automatic Deck Floor Roll Forming Equipment 0 - 12 M / Min 28 Roller Stands
Fully Automatic Deck Floor Roll Forming Equipment 0 - 12 M / Min 28 Roller Stands
Fully Automatic Deck Floor Roll Forming Equipment 0 - 12 M / Min 28 Roller Stands
Fully Automatic Deck Floor Roll Forming Equipment 0 - 12 M / Min 28 Roller Stands
Fully Automatic Deck Floor Roll Forming Equipment 0 - 12 M / Min 28 Roller Stands
Specifications
Brand Name :
Sussman
Model Number :
RF-DF
Certification :
CE, SGS, ISO
MOQ :
1 set
Price :
negotiable
Delivery Time :
50 days after deposit
Packaging Details :
Film and steel
Place of Origin :
Wuxi, China
material thickness :
0.6-1.2mm
forming speed :
0-12m/min
Roller stands :
28 stands
Roller material :
45# steel, surface with quench HB240
Main motor power :
30Kw
Hydraulic cutting power :
5.5Kw
Description

YX50-344-1000 Fully Automatic Deck Floor Roll Forming Machine

1. Technical Parameter

steel thickness: 0.6-1.2mm

forming speed: 0-12m/min

raw material width: 1220mm

roller stands: 28 stands

roller material: 45# steel

shaft diameter and material: 90mm, 45# steeel with quench HB240

main motor power: 30Kw

hydraulic cutting power: 5.5Kw

hydraulic pressure: 12Mpa

cutting blade material: Cr12

machine size: 18500mm x 1800mm x1200mm

2. Machine Components

5 Ton passive decoiler 1 set
Main roll forming machine 1 set
Control box 1 unit
Hydraulic station 1unit
Out table 500mm 2 units

3. Details of Each Composition

Cutting:

  • cutting motion: the main machine automatically stops and then cutting. After the cutting, the main mahcine will automatially start.
  • cuting blade material: Cr12 with heat treatment
  • length measuring : automatic length measuring
  • tolerance of length: +/- 1.5 mm

Control Box: Panasonic Brand

  • power supply: 415V, 50Hz, 3Phase
  • automatic length measurement
  • automatic quantity measurement
  • computer used to control length & quantity.Machine will automatically cut to length and stop then required quantity is achieved
  • length inaccuracy can be amended easily
  • control panel : button type switch and touch screen
  • unit of length: millimeter (switched on the control panel)

3. Profile

Fully Automatic Deck Floor Roll Forming Equipment 0 - 12 M / Min 28 Roller Stands

Fully Automatic Deck Floor Roll Forming Equipment 0 - 12 M / Min 28 Roller Stands

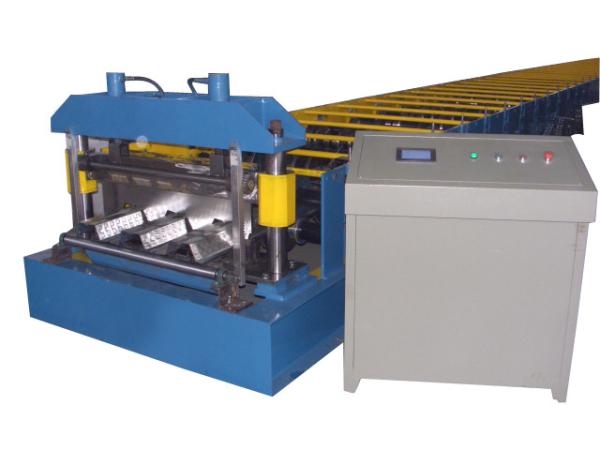

4. Machine Photo

Fully Automatic Deck Floor Roll Forming Equipment 0 - 12 M / Min 28 Roller Stands
