PLC Control Cold Roller Sheet Coil Steel Slitting Machine Line Large Thickness 1.5mm
PLC Control Cold Roller Sheet Coil Steel Slitting Machine Line Large Thickness 1.5mm
PLC Control Cold Roller Sheet Coil Steel Slitting Machine Line Large Thickness 1.5mm
PLC Control Cold Roller Sheet Coil Steel Slitting Machine Line Large Thickness 1.5mm
PLC Control Cold Roller Sheet Coil Steel Slitting Machine Line Large Thickness 1.5mm
PLC Control Cold Roller Sheet Coil Steel Slitting Machine Line Large Thickness 1.5mm
Specifications
Brand Name :
Sussman
Model Number :
SS-SM
Certification :
CE, SGS, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
60--75 days after deposit
Packaging Details :
Standard package with film, plastic and steel wire. (or customized)
Material Thickness :
0.2-1.5mm
Slitting Speed :
0-30m /min
Width of coil plate :
500-1500mm
Coil I.D :
480-520
Coil O.D :
≤1600
Coil weight :
12 Ton
Material of blade :
6CrW2Si
Loading capacity: :
6T
Control system :
PLC with touch screen
Power supply :
380V, 50Hz, 3Phase
Description

Slitting line machine

Technical Parameter

NO.

Name

Unit

Parameters

1

Control model

 Frequency conversion control

2

 Materials Cold rolled steel, Galvanized steel ,Aluminium

3

 Thickness mm 0. 2-1.5

4

 Width mm 500-1500

5

 Coil I.D. mm 480-520

6

 Coil O.D. mm ≤1400

7

 Weight T 6

8

 Slitting blade shaft mm Φ120

9

 Blade specification mm Φ220×Φ120×10

10

 Material of blade 6CrW2Si

11

 Line speed m/min ≤15

12

 Power of decoiler KW 11

13

 Power of slitting machine KW 15

14

 Power of recoiler KW 30

15

 Leveling roller diameter 55mm

16

 Width tolerance ≤±0.05 mm

17

 The direction of whole line from right to left, the operate table faces the machines

18

 Power 380V/3Ph/50Hz( Customized)

19

 Operation people 1 technician and 1 general worker

20

 Color green ( Customized)

Cut-to-length Line Machine Components

NO. Equipment name Quantity
1. 5 Ton hydraulic decoiler 1 set
2. Hydraulic pinch and press and pre-leveling device 1 set
3. Slitting machine 1 set
4. Scrap winder 1 set
5. Tension stand 1 set
6. Hydraulic recoiler 1 set
7. Electrical control system 1 set

Advantage for Slitting Machine Line

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Working Flow

Decoiler---Leveling---Cutting---Recoiler

PLC Control Cold Roller Sheet Coil Steel Slitting Machine Line Large Thickness 1.5mm

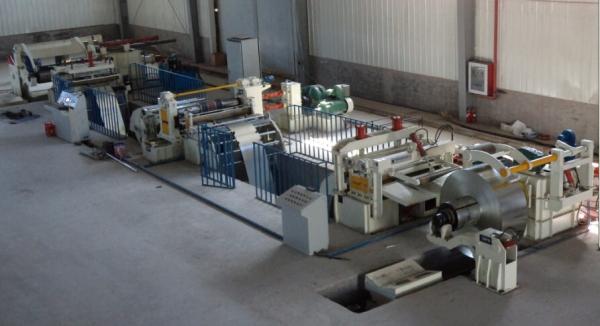

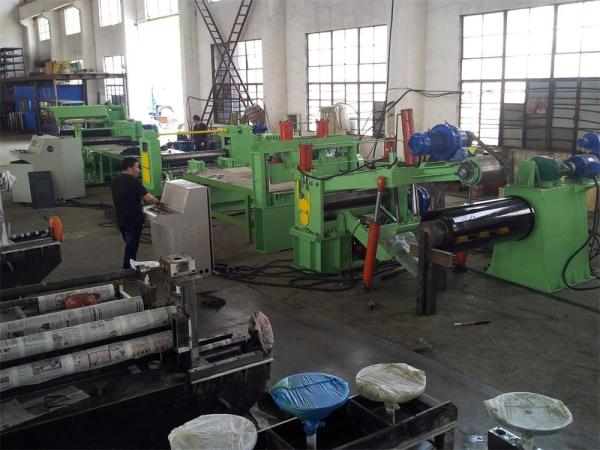

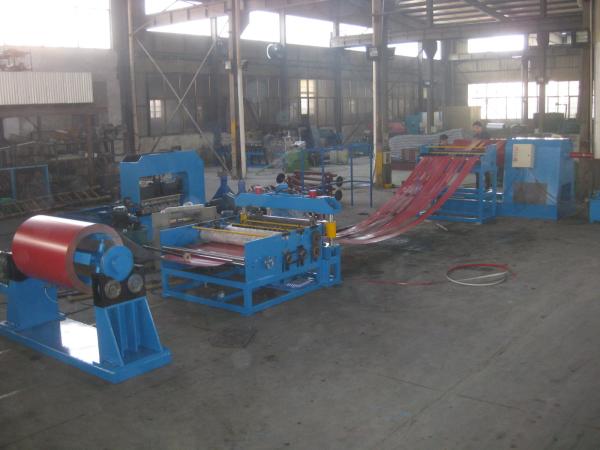

Photo Gallery

PLC Control Cold Roller Sheet Coil Steel Slitting Machine Line Large Thickness 1.5mm

PLC Control Cold Roller Sheet Coil Steel Slitting Machine Line Large Thickness 1.5mm

PLC Control Cold Roller Sheet Coil Steel Slitting Machine Line Large Thickness 1.5mm

PLC Control Cold Roller Sheet Coil Steel Slitting Machine Line Large Thickness 1.5mm

PLC Control Cold Roller Sheet Coil Steel Slitting Machine Line Large Thickness 1.5mm

Loading pictures

PLC Control Cold Roller Sheet Coil Steel Slitting Machine Line Large Thickness 1.5mm

Company Profile

Sussman Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile

of roll forming machine.

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down

Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products

are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other

construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and

steel production enterprises' growing demands.

Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
