ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve
ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve
ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve
ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve
ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve
ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve
ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve
ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve
ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve
ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve
Specifications
Brand Name :
Sussman
Model Number :
SS-CT
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
10 sets/ month
Delivery Time :
60 working days after deposit
Packaging Details :
Standard package with film, plastic and steel wire. (or customized)
Roller material :
GCr15
Control system :
PLC with touch screen
Dirve system: :
chain
Power supply :
380V, 50Hz, 3Phase
Material thickness :
0.2--4mm
Material :
Galvanized steel
Description

Cable tray roll forming machine



Main Specifications

1. material width: 100-600mm

2. material thickness: 0.4-2.5mm

3. uncoiler: 6 tons manual

4. rolling speed: 2-4m/min

5. roller stations: 20 stations

6. roller material: GCr15 quench treatment

7. main motor power : 22Kw

8. cutting material: Cr15 with quench treatment

9. hydraulic cutting power: 5Kw

10. power supply: 380V, 50Hz, 3 Phase

11. control system: PLC Panasonic

Machine Component List


5 Ton Hydraulic De-coiler

1 set


Levelling device

1 set


Servo Feeding device

1 set


Press Machine JH-200

1 set


Main Roll Forming Machine

1 set


PLC Control box

1 unit


Hydraulic Station

1 unit


Cutting device

1 unit


Punching mould

1 unit


Out table

2 units

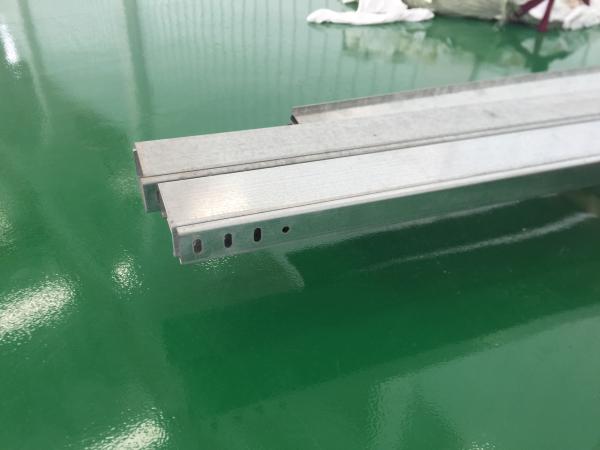

Cable Tray Profile Drawings
ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve




ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve




ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve


ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve


ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve
Advantage of roll forming machine

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Afrer-sales service

Working Flow

Decoiler- Levelling- Servo Feeding- Punching- Main Roll Forming - Cutting- Runout Table
ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve

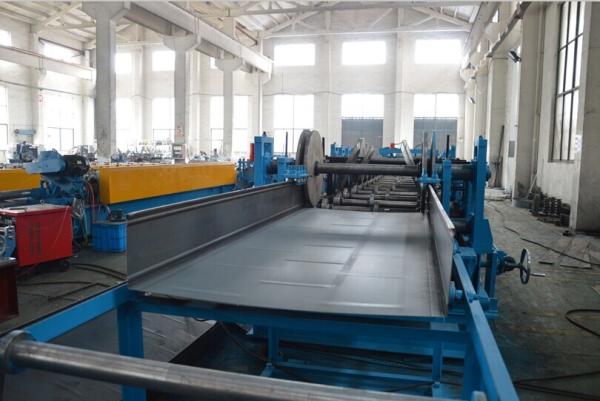

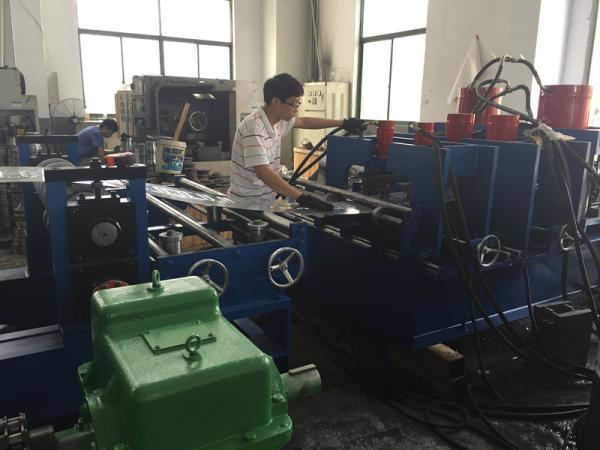

Machine Photo

ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve

ISO Certification Cable Tray Roll Forming Machine 20 Roller Stations Chain Dirve

Application

In the electrical wiring of buildings, a cable tray system is used to support insulated electric
cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through
a pipe.
