Advanced Metal Roof Structure Z Purlin Rolling Forming Machine Chain Drive
Advanced Metal Roof Structure Z Purlin Rolling Forming Machine Chain Drive
Advanced Metal Roof Structure Z Purlin Rolling Forming Machine Chain Drive
Advanced Metal Roof Structure Z Purlin Rolling Forming Machine Chain Drive
Specifications
Brand Name :
Sussman
Model Number :
SM-CZ
Certification :
SGS.CE.ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability :
10 sets per month
Delivery Time :
75 days
Packaging Details :
film and steel
Material :
Galvanized steel
Working Speed :
15 m/ min
Forming Stations :
18 stations
Cutter material :
Cr12 Steel
Main Power :
15kw
Power supplier :
380V
Machine size :
7.3m×0.8m×1.0 m
Cutting system :
Hydraulic Cutting
Description

Advanced Metal Roof Structure Z Purlin Roll Forming Machinery Drive by Chain

General description

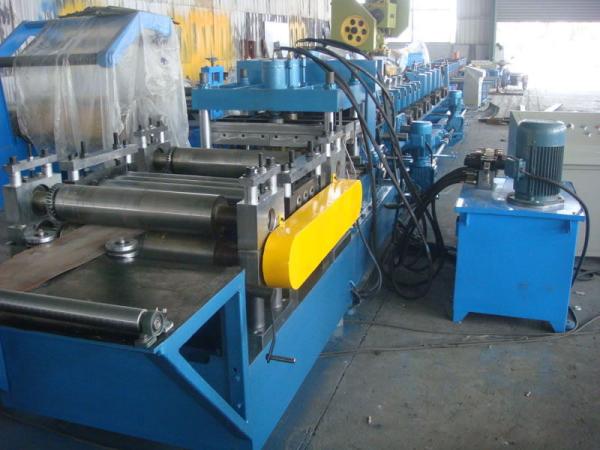

Z purlin roll former make up of decoiler, feeding leveling, hydraulic punching device, hydraulic cutting, PLC control system, hydraulic stations, run out tables.
It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 15m/min.


C Z Purlin Technical Parameter

Suitable material

Steel sheet

Main motor power

15KW

Hydraulic station power

5.5 KW

Thickness of material

1.5-3.0mm

Diameter of principal axis

Φ70mm

Electric tension

380V 3phase 50HZ

Material of roller

CGr15 bearing steel HR58-60

Processing speed

15m/min

Processing precision within

10m+/-1.00mm

Material of cutting blade

Cr12 mould steel

Kind of drive

Chain

Roller station

18 rollers

Control System

PLC and Inverter




Working Flow

Decoiler—feeding with guide—leveling—punching—cutting— roll forming—run out table

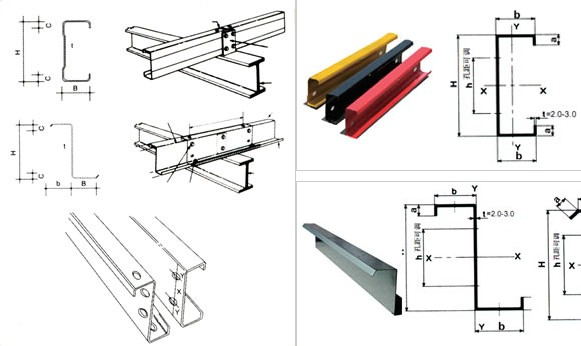

Profile and Drawing Of Product


Advanced Metal Roof Structure Z Purlin Rolling Forming Machine Chain Drive


Each part of machine



Advanced Metal Roof Structure Z Purlin Rolling Forming Machine Chain Drive


Our Service

> Warranty: 12 months.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it’s not free.
> We will provide the technical support for the whole life of the equipment.


Our Company

Sussman Machinery is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile
of roll forming machine.

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.

If there are any other customized machines that you are interested in, please contact us for further discussion. We will provide you for the most suitable machine solution for your market.
