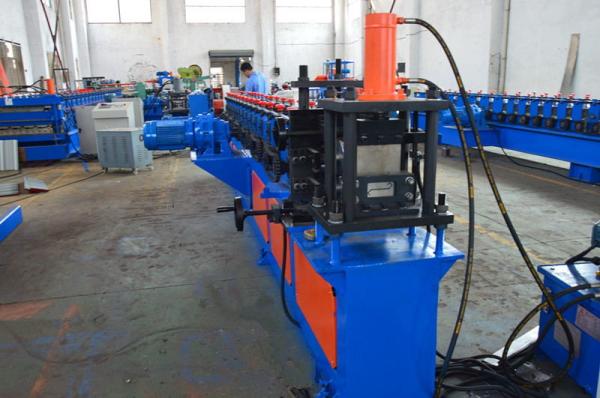

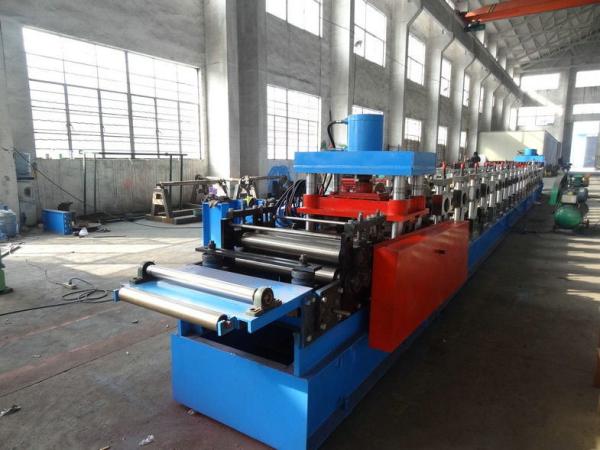

Cold Formed Steel Profile CZ Purlin Roll Forming Machine CE Standard 380V 15kw
Cold Formed Steel Profile CZ Purlin Roll Forming Machine CE Standard 380V 15kw
Cold Formed Steel Profile CZ Purlin Roll Forming Machine CE Standard 380V 15kw
Cold Formed Steel Profile CZ Purlin Roll Forming Machine CE Standard 380V 15kw
Cold Formed Steel Profile CZ Purlin Roll Forming Machine CE Standard 380V 15kw
Cold Formed Steel Profile CZ Purlin Roll Forming Machine CE Standard 380V 15kw
Specifications
Brand Name :
Sussman
Model Number :
SM-CZ
Certification :
SGS.CE.ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability :
10 sets per month
Delivery Time :
75days
Packaging Details :
film and steel
Material :
Galvanized steel
Thickness :
1.5-3.0mm
Main Power :
15kw
Power supplier :
380 Voltage
Machine size :
7.3×0.8×1.0 m
Cutting system :
Hydraulic Cutting
Roller stations :
18 stations
Forming speed :
up to 12m/min
Description

Cold Formed Steel Profile C Z Purlin Roll Forming Machinery CE Standard


C Z Purlin Technical Parameter

Suitable material

Galvanized steel
Thickness of material

1.5-3.0mm(can be changed according to customers need)

Main motor power

15KW

Hydraulic station power

5.5 KW

Diameter of principal axis

Φ70mm

Electric tension

380V 3phase 50HZ

Material of roller

CGr15 bearing steel

Processing speed

15m/min

Processing precision within

10m+/-1.00mm

Material of cutting blade

Cr12 mould steel

Kind of drive

Chain

Roller station

18 rollers

Control System

PLC and Inverter
Weight about 4 tons


Machine components

Manual Deoiler

(1)Material coil inner diameter: 460mm-520mm

(2). Max coil Width:500mm

(3). Carrying capacity: 3T

Cutting System

(1)Blade and punching mold material: Cr12MoV steel with quenched treated 60-62℃

(2)Cutting system: Advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.

(3) Punching: automatic punching before forming, three round hole can be done separately.

(4) Oil pump one set

Hydraulic station power

(1)Uncoilers loading capacity: Max 3000kgs

(2)Controlling system:PLC & Converter

Control Box: Panasonic Brand

(1) Power supplier: 380V, 60Hz, 3Phase (adjusted with the requestment)
(2) Length & quantity measurement automatically;
(3) Length & quantity controlled by PLC,
(4) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) The language in the touch screen: English and Chinese
(8) Unit of length: millimeter (switched on the control panel)

Out Table

Length : 1.5meters
Quantity: 2 Units

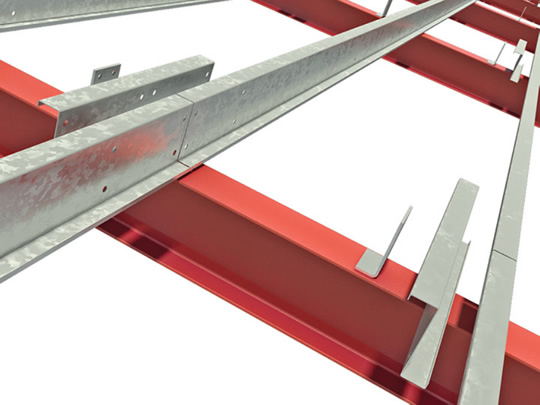

Profile and Drawing Of Product
Cold Formed Steel Profile CZ Purlin Roll Forming Machine CE Standard 380V 15kw

Cold Formed Steel Profile CZ Purlin Roll Forming Machine CE Standard 380V 15kw


Packing & Delivery

1. 40 feet container is required

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film

3. Spare parts and some small parts packed in plastic tooling box

4. All Components Fixed by steel wire with Container.

Our Service

Payment: 30% T/T in advance, balance should be paid before shipping
Delivery: within 75days after deposit.

Warranty terms:one year beginning on the date of commissioning completion.

After-sale service

1. we will provide training and site installation guidance in the earlier stage until you can correctly operate and install our products.

2. The installation technicians (normally 2 people) shall install and debug the equipment. The purchaser should pay the round-trip ticket fees, accommodation and vise expense.

3. During the debugging period (from the day leave to the day back to China) the purchaser should pay the technician USD50 per day.
