Specifications
Brand Name :
SUHANG
Model Number :
SH-PU
Certification :
SGS. ISO, CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
10 sets per month
Delivery Time :
60 working days after deposit
Packaging Details :
Standard package with film, plastic and steel wire. (or customized)
Forming speed :
8-15m/ min
Material of blad :
Cr12, quenching treatment
Control system :
PLC with touch screen
Material :
galvanized steel
Power supply :
380V, 50Hz, 3Phase
Dirve system :
Chain drive
Description

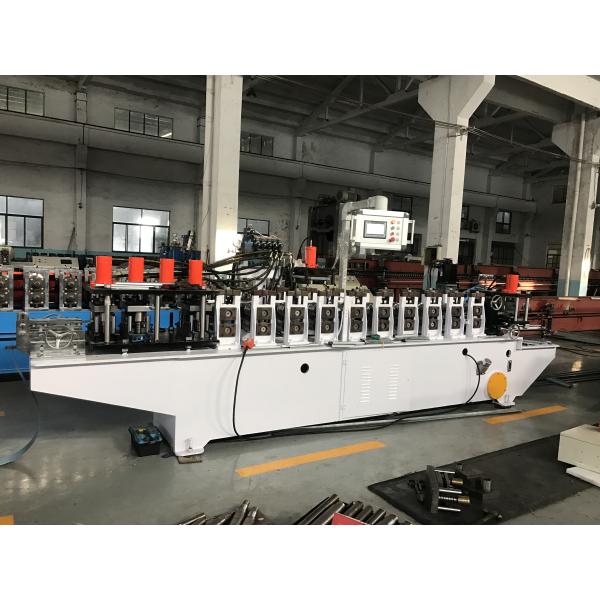

PU Shutter Door Roll Forming Machine

Technical Data

1. Steel Sheet Thickness: 0.3-1.2mm (depend on requirement )

2. Cutting: fly saw cutting

3. Transmission way: chain

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 3 ton hydraulic decoiler

6. Forming Speed: 8-15m/min

7. Roller Groups: 38 stations

8. Roller Material: GCr15 grade steel, quenching treatment

9. Material: color-coated galvanized steel

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 11 Kw


Production Line Machine List

Serial No.

Commodity & Description

Quantity

1

3T manual uncoiler

1 set

2

feeding guiding

1 set

3

Main roll forming machine

1 set

4

Output table

1 set

5

Main drive gear box

1 set

6

Fly saw cutting

1 set

7

Controlling system (including cabinet)

1 set

8

Water cooling system

1 set

9

Cassette

2 sets

Advantage of machine

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Standard Profile :
PU Shutter Door Roll Forming Equipment PLC With Touch Screen Control System
PU Shutter Door Roll Forming Equipment PLC With Touch Screen Control System

PU Shutter Door Roll Forming Equipment PLC With Touch Screen Control System

PU Shutter Door Roll Forming Equipment PLC With Touch Screen Control System

PU Shutter Door Roll Forming Equipment PLC With Touch Screen Control System

Working Flow

Uncoiling – feed Guiding–Roll forming ––fly saw cutting – Run-out table

PU Shutter Door Roll Forming Equipment PLC With Touch Screen Control System

Pictures

PU Shutter Door Roll Forming Equipment PLC With Touch Screen Control System

PU Shutter Door Roll Forming Equipment PLC With Touch Screen Control System

PU Shutter Door Roll Forming Equipment PLC With Touch Screen Control System
