380V Stud And Track Roll Forming Machine Mild Steel Wall Angle Roll Former Machine
380V Stud And Track Roll Forming Machine Mild Steel Wall Angle Roll Former Machine
380V Stud And Track Roll Forming Machine Mild Steel Wall Angle Roll Former Machine
380V Stud And Track Roll Forming Machine Mild Steel Wall Angle Roll Former Machine
Specifications
Brand Name :
Suhang
Model Number :
RF-ST
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
10 sets/month
Delivery Time :
45 days after deposit
Packaging Details :
Film and steel
Machine weight :
about 3.5 tons
Electric Source :
380V 50Hz 3 Phase
Main Motor Power :
7.5KW
Hydraulic Station Power :
4KW
Profile sizes :
20*20-100*100mm adjustable
Material Thickness :
1.0-3.0mm galvanized sheet G450
Description

30 x 30 x 1.5 mm Mild Steel Wall Angle Roll Former Machine 380V 50Hz 3 Phase

1. Technical Parameter

Material thickness: 1.0-3.0mm galvanized coils or black steel

Profile sizes:20*20-100*100mm

rolling speed: 10-15m/min

roller stations: 9 stations

roller material: 45# steel, with quenching 60mm shaft

main motor power: 7.5Kw

hydraulic cutting power: 4Kw

cutting blade material: Cr12

power supply: 380V, 50Hz, 3Phase

machine weight: about 3.5Tons

machine size: Length 5500mm* Width 600mm* Height 1000mm

2. Working Flow

Decoiler---Feeding with guide—Rollforming——Cutting—Products collecting

3. Machine Components

3 ton passive decoiler 1 set
Main roll forming machine 1 set
PLC control box 1 unit
Hydraulic station 1 unit
Out table 2 units

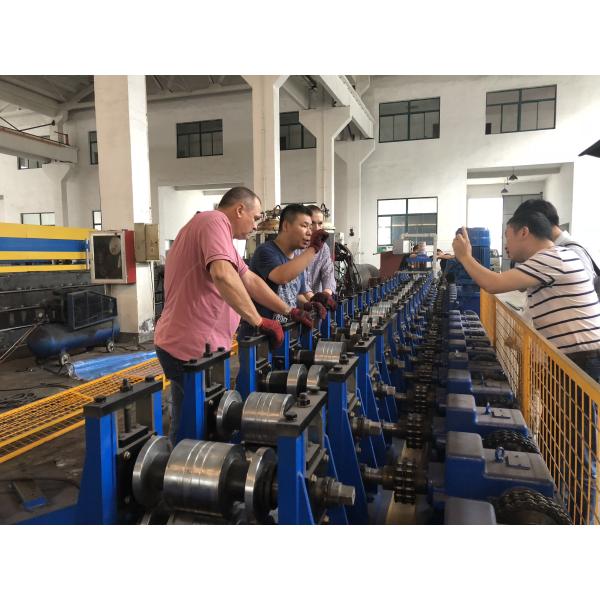

4. Machine Photo

380V Stud And Track Roll Forming Machine Mild Steel Wall Angle Roll Former Machine

380V Stud And Track Roll Forming Machine Mild Steel Wall Angle Roll Former Machine380V Stud And Track Roll Forming Machine Mild Steel Wall Angle Roll Former Machine

5. Our Exhibition

380V Stud And Track Roll Forming Machine Mild Steel Wall Angle Roll Former Machine380V Stud And Track Roll Forming Machine Mild Steel Wall Angle Roll Former Machine

6. Payment Term:T/T,L/C

30% T/T in advance and 70% T/T after inspection before shipment.

Warranty

1. One year, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation

overseas and USD100/person/day for salary.

3. Need one technicians

4. Training time: one week (contains the time of installation and adjustment)
