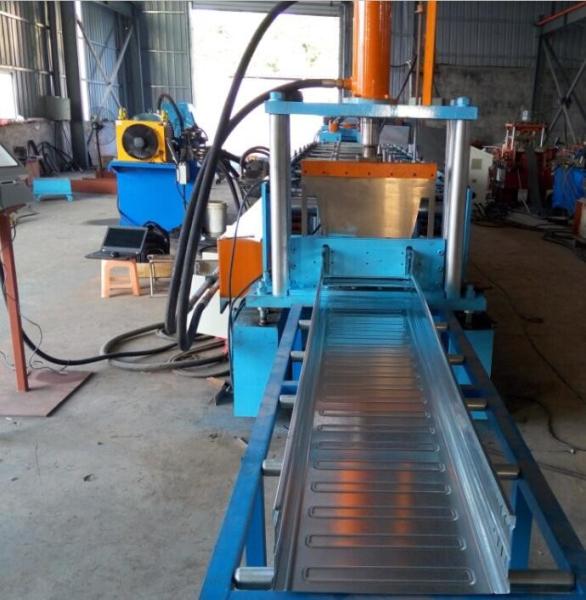

Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS
Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS
Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS
Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS
Specifications
Brand Name :
Sussman
Model Number :
SM-CT
Certification :
CE,SGS,ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
90 days after deposit
Packaging Details :
Film and steel wire
Main Power :
22KW
Thickness :
1.0-3.0mm
Driven system :
1.5 inches Chain Driven
Electric Source :
380V, 50HZ,3 phase
Width of the profile :
200-600mm
Roller Stations :
20 stations
Material :
Galvanized steel or blank steel
Rolling Speed :
8-9m/min
Warranty :
12 months
Description

European Standard Cable Tray Production Line,Aluminum Cable Tray Forming Machine



Technical Parameter

Items Specifications
Un Coiler Raw material galvanized coils
Height of the profile 60-200mm
Thickness 1.0mm-3.0mm galvanized coils
Punching Way Hydraulic punching moulds 3 sets
Forming system Rolling Speed 8-9m/min
Roller Stations About 20 stations
Roller Material

Gcr 15with quenching
Shaft Dia 75mm
Hydraulic cutting Power 7.5 kw

Cutting
system

 Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Electrical control system Electric Source

380V, 50HZ,3 phase
Also can satisfy Customer’s require
Control System PLC (Panasonic) as list in the note
Weight About 8 tons
Profile adjustment Control by the rails&motor
Way Of Drive 1.5 inch chain
Size of machine Length 11000mm* Width 800mm* Height 1000m



Technological process

Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS

This Production line includs automatic decoiler, level device, servo feeding, punching press, main molding core, hydralic system, control system, panel supporting table.


Sample pictures

Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS

Factory Overview

Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS

Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS



Our advantage


a. To produce the best cable tray roll forming machine, Machine is taken EUROPEAN quality standard.
b. Choose the best material and components, and adopting our 15+ years experience.
c. Customers'design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
d. Schneider PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
e. Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than eighty countries and regions.We have professional team, complete production system, high quality products, good service.
f. Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.

Main product:

Light keel roll forming machine

Roof roll forming machine

Roller shutter door roll forming machine

C and Z purlin roll forming machine

Downpipe roll forming machine

Hydraulic decoiler

Bending machine

Slitting machine
