CE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming Machine
CE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming Machine
CE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming Machine
CE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming Machine
CE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming Machine
CE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming Machine
CE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming Machine
CE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
RF-SC
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
60 days after deposit
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
Price :
USD25000-USD35000 Per set
Supply Ability :
2 sets per month
Forming stations :
13 stations
Decoiler :
3 Ton Manual
Material thickness :
0.7-1.2mm galvanized coil
Roller material :
45# forge steel, coated with chrome
Main motor power :
7.5Kw
Hydraulic cutting power :
4Kw
Way Of Drive :
1.2 inch single chain
Shaft Material and DIA :
75mm, 45# forge steel, Chrome with quenching
Tolerance :
1mm
Description

CE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming Machine

Machine Components

3 ton passive de-coiler 1 set
Main roll forming machine 1 set
PLC control box 1 unit
Hydraulic station 1 unit
Cutting device 1 unit
Punching device 3 sets
Out table 2 units
Logo Embossing rolls 1 unit

Technical Process

Decoiler- Punching- Feeding- Roll forming- Cutting- Run out table

Technical Parameter

1. roller stations: 13 stations

2. forming speed: 5-12m/min

3. material thcikness: 0.7-1.2mm

4. roller material: GCr15, HRC55-60

5. shaft diameter: 60mm

6. shaft material: 45# steel

7. main motor power: 7.5Kw

8. Hydraulic station: 4Kw

9. PLC: Panasonic

10. Machine size: 6000mmx 800mm x 900mm

11. machine weight: 3 tons

12. cutting blade material: Cr12Mov

13. drive way: 1 inch chain drive

14. Cutting: hydraulic cutting

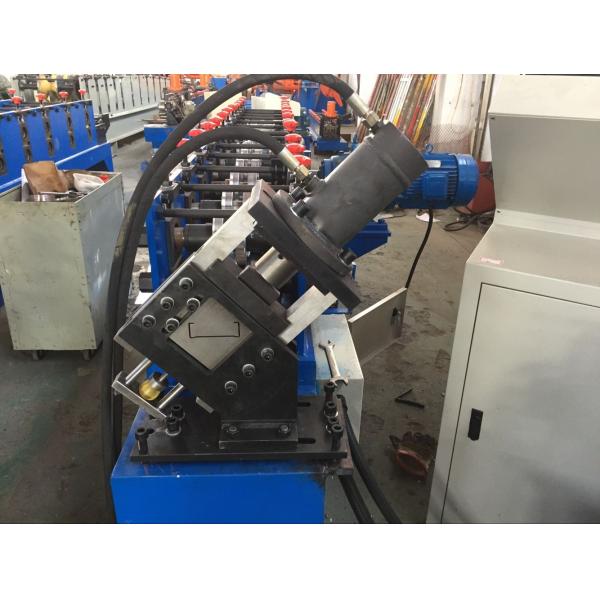

Machine Photo

CE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming Machine

Profile

CE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming Machine

Package and Loading


CE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming MachineCE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming Machine
