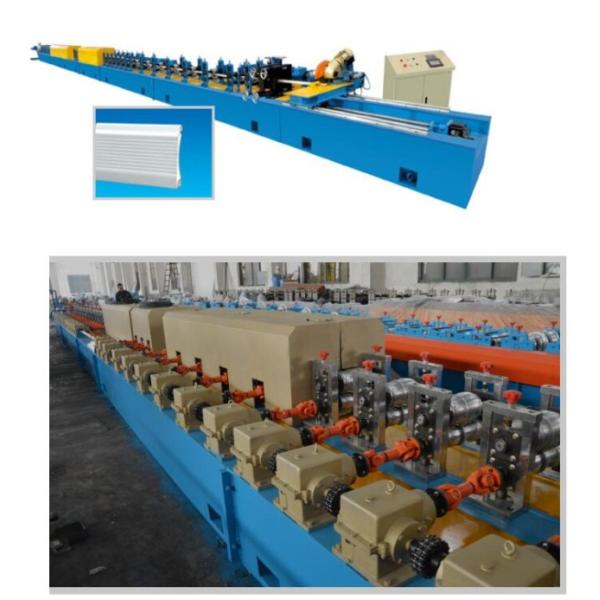

8-15 M / Min 36 Stands PU Foamed Rolling Shutter Machine 0.5- 0.7mm Thickness Can Adjusted
8-15 M / Min 36 Stands PU Foamed Rolling Shutter Machine 0.5- 0.7mm Thickness Can Adjusted
8-15 M / Min 36 Stands PU Foamed Rolling Shutter Machine 0.5- 0.7mm Thickness Can Adjusted
8-15 M / Min 36 Stands PU Foamed Rolling Shutter Machine 0.5- 0.7mm Thickness Can Adjusted
8-15 M / Min 36 Stands PU Foamed Rolling Shutter Machine 0.5- 0.7mm Thickness Can Adjusted
8-15 M / Min 36 Stands PU Foamed Rolling Shutter Machine 0.5- 0.7mm Thickness Can Adjusted
8-15 M / Min 36 Stands PU Foamed Rolling Shutter Machine 0.5- 0.7mm Thickness Can Adjusted
8-15 M / Min 36 Stands PU Foamed Rolling Shutter Machine 0.5- 0.7mm Thickness Can Adjusted
Specifications
Brand Name :
Sussman
Model Number :
SM-SD-1458
Certification :
CE, SGS, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 50,000 per set
Supply Ability :
5 set per month
Delivery Time :
60-90 days
Packaging Details :
standard film
Type :
Shutter Door Slat Roll Forming Machine
Coil width :
312mm
Forming stands :
about 36 stands
Roller material GCr15 :
model steel, HRC50-54
Axial diameter :
value 40mm
Working speed :
8-15m/min
Description

8-15 M / Min 36 Stands PU Foamed Rolling Shutter Machine 0.5- 0.7mm Thick Can Adjusted

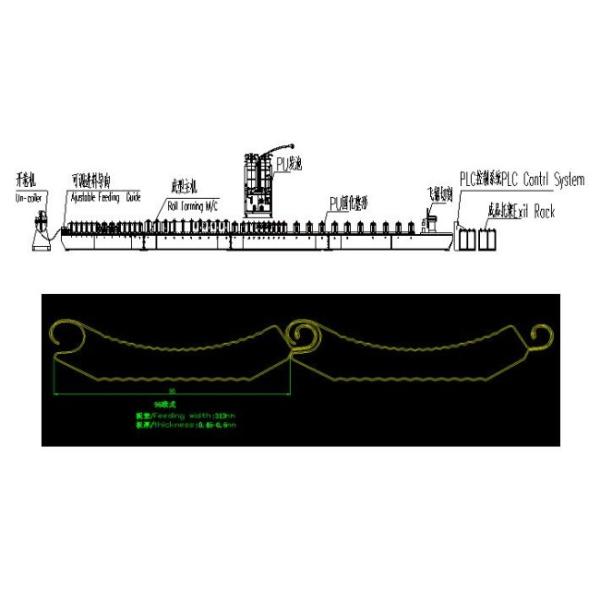

Working flow

Decoiler—feedingdevice—mainforming—PUinjection---straightendevice——FlysawCutting ---run out table8-15 M / Min 36 Stands PU Foamed Rolling Shutter Machine 0.5- 0.7mm Thickness Can Adjusted

Machine component

1 De-coiler 1 set
2 Guide Feeding device 1 set
3 main forming machine 1 set
4 Foaming machine (just foamed one owned) 1 set
5 Straighten device 1 set
6 flying saw cutting machine 1 set
7 finished products table 1 set
8 PLC control system 1 set
9 Spare Parts And Tools 1 set

Main specification

a. Decoiler

Manual un-coiling Capacity: ≤3 T

b. Main datas of forming machine

Forming stands: about 36 stands

Roller material GCr15: model steel, HRC50-54

Axial diameter: Φ40mm

Main axial material: No 45 steel HRB260-280

Driving part is gear box transmission

Frequency conversion decelerating Panasonic

PLC control: fix length control ±1mm (Panasonic)

Main components: Schneider

The precision of roller: less than ±0.5mm

Main roll forming machine motor: 380V, 50HZ, 11kw (or according to your requirements)

Machine basement material: H beam

Foaming machine: 1 set (China top brand)

Pneumatic flying punching machine 1 set Material of cut: Cr12Mov Quench: HRC58-62

Automatic punching device 1 set

Finished products table: 1 set

Working speed: 8-15m/min

dimensions of main forming machine: 24000mm× 600mm × 900mm

Machine weight: about 7T

8-15 M / Min 36 Stands PU Foamed Rolling Shutter Machine 0.5- 0.7mm Thickness Can Adjusted
