20 Stations C Purlin Forming Machine With 11kw Principal Electric Motor
20 Stations C Purlin Forming Machine With 11kw Principal Electric Motor
20 Stations C Purlin Forming Machine With 11kw Principal Electric Motor
20 Stations C Purlin Forming Machine With 11kw Principal Electric Motor
20 Stations C Purlin Forming Machine With 11kw Principal Electric Motor
20 Stations C Purlin Forming Machine With 11kw Principal Electric Motor
20 Stations C Purlin Forming Machine With 11kw Principal Electric Motor
20 Stations C Purlin Forming Machine With 11kw Principal Electric Motor
Specifications
Brand Name :
Sussman
Model Number :
SS - CZ
Certification :
CE
Place of Origin :
Wuxi, China
MOQ :
1 Set
Price :
USD + (30000,49500) + Set
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 + Sets + Per month
Delivery Time :
60 days
Packaging Details :
Standard film
Thickness :
1.5-3.0mm
Speed :
10m/min
Material of the roller :
steel Cr15
Roller :
20 stations
Electric motor :
11kw
Gross weight :
15 T
Description

20 Stations C Purlin Forming Machine With 11kw Principal Electric Motor

Features

1. The roller of the principal machine adopts the bearing steel GCr15 to strike, distressing to annealing, quenching, tempering, and Parkerizing, such heat treatment process. The surface hardness reached HRC60 degree. All the rollers are made by the numerical control lather, and this guarantees the accuracy of the roller’s sizes and prolongs its working life.


2. The set of machine change the specification by using semicircle retaining ring to adjust. It is convenient for the workers to operate them.


3. Punching structure is of a high-degree automatically system, under the control of computers which have been set beforehand, it can finish wherever technical punching with ease. What it adopts is professional model material Cr12MOV and cooling model, it will stick to the automatic cooling techniques.


4. Shear gauge is the last process, which can cut any sizes what you want immediately and accurately under

Parameters

Thickness 1.5-3.0mm
Speed 10m/min
Material of the roller steel Cr15
Roller 20 stations
Principal axis steel No.45
Electric motor 11kw
Hydrodynamic station cut 7.5KW
Drive-by-wire system PLC industrial computer
Size 10.3×1.5×1.2
Gross weight 15 T
Driving system gear box drive

Machine list

Machine list 3 ton passive Uncoiler 1 set
Main roll forming machine 1 set
Control box 1 unit
Hydraulic station 1 unit
Out table 1500mm 2 unit
Hydraulic punching and cutting device 2 unit
Hydraulic cutting device 1 unit

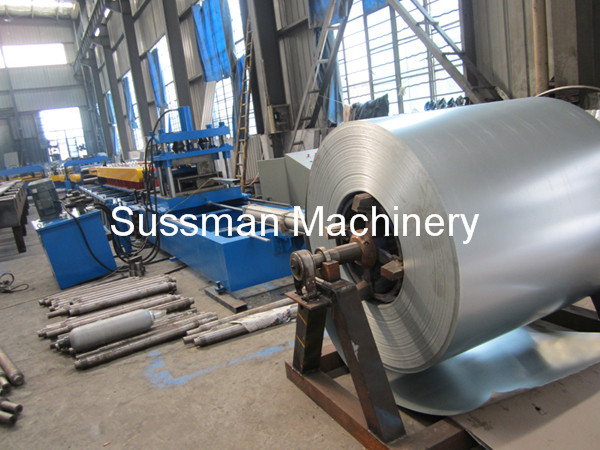

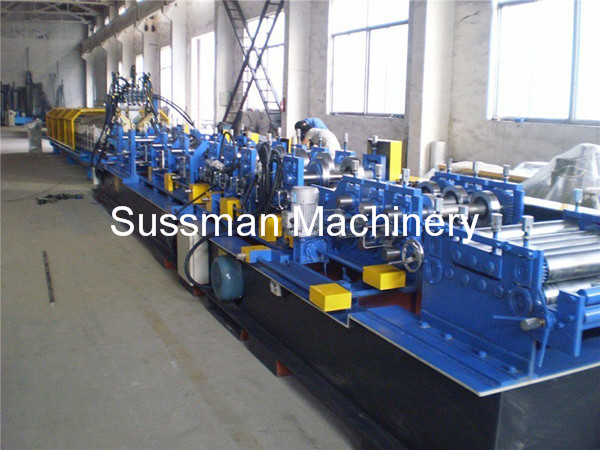

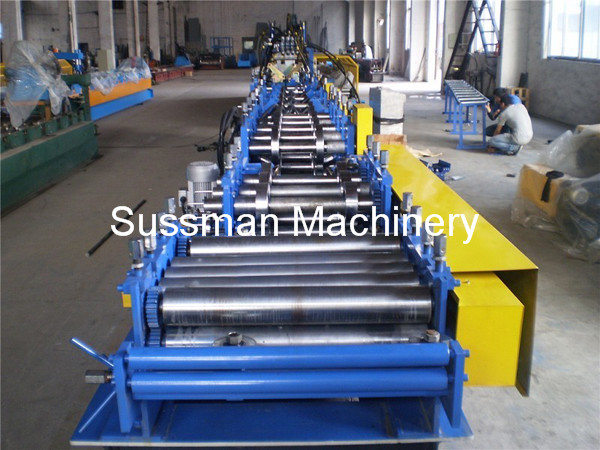

Machine pictures

20 Stations C Purlin Forming Machine With 11kw Principal Electric Motor

20 Stations C Purlin Forming Machine With 11kw Principal Electric Motor

20 Stations C Purlin Forming Machine With 11kw Principal Electric Motor

Sample

20 Stations C Purlin Forming Machine With 11kw Principal Electric Motor
