Specifications
Brand Name :
Sussman
Model Number :
RF-ST
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
10 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
Thickness :
0.5-1.0mm galvanized coils
Stations :
13 Rollers
Motor power :
7.5Kw
hydraulic cutting power :
4Kw
Machine size :
4500mm *800mm * 1200mm
Material of cutting :
Cr12Mov with quench HRC58-62°
Description

7.5KW Stud And Track Roll Forming Machine Steel Light Keel Roll Forming Machine Chain Drive

1. Technical Parameter

Item NO

Description

Offered specification
1.1 Roller stations About 13 stations
1.2 Voltage 380V, 50HZ, 3phase
1.3 Raw material G550 Galvanized coils
1.4 Rolling thickness 0.5-1.0mm
1.5 Dimension 4500×800×1200(mm)
1.6 Main motor power 7.5kw
1.7 Roller material 45# steel, coated with chrome, Quenching
1.8 Shaft diameter Φ60mm ,material is 45# forge steel
1.9 Transmission By chain 1 inch
1.10 PLC Panasonic brand
1.11 Material of chain 45# forged steel with frequency quenching, 12A
1.12 Material of cutting Cr12Mov with quench HRC58-62°
1.13 Tolerance 6m+-1.5mm
1.14 Frame H type steel

2. Working Flow

Decoiler---Feeding with guide-----Roll forming—— Stop Cutting—Products collecting

3. Machine Components

3Tdecoiler 1 set
Hydraulic Cutting device 1 set
Main roll forming machine 1 set
Control box system 1 unit
Out tables 2 units
Tool box 1 package

4. Features of the production line

1) Directly input the data on the touchable screen, it is easy operation.

2) Automatically continually manufactures high quality product with PLC.

3) Saving time and cost owing to high speed running with hydraulic system.

4) Professional designing for manufactures roofing & walling

5) Customers decide the profile of products.

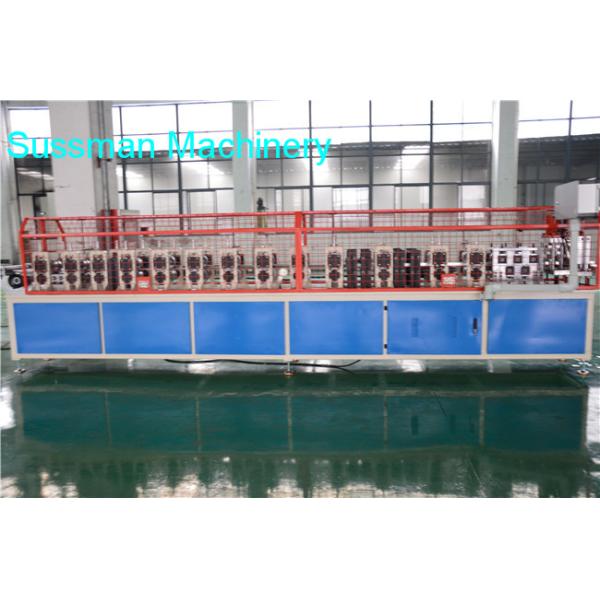

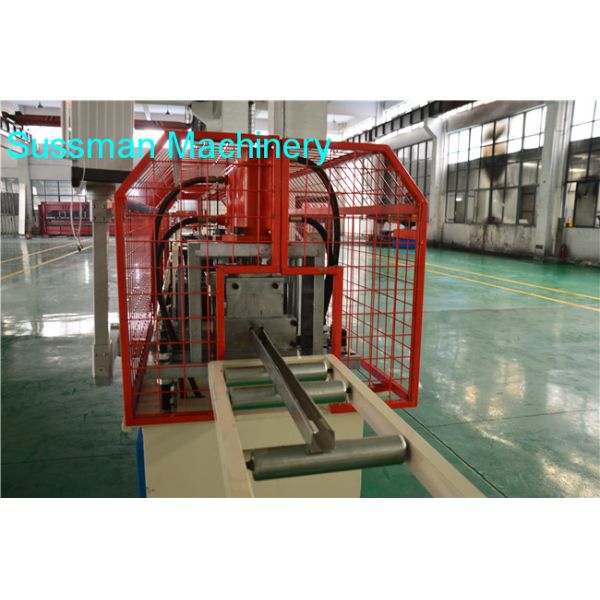

5. Machine picture

7.5KW Stud And Track Roll Forming Machine Steel Light Keel Roll Forming Machine Chain Drive

7.5KW Stud And Track Roll Forming Machine Steel Light Keel Roll Forming Machine Chain Drive

7.5KW Stud And Track Roll Forming Machine Steel Light Keel Roll Forming Machine Chain Drive
