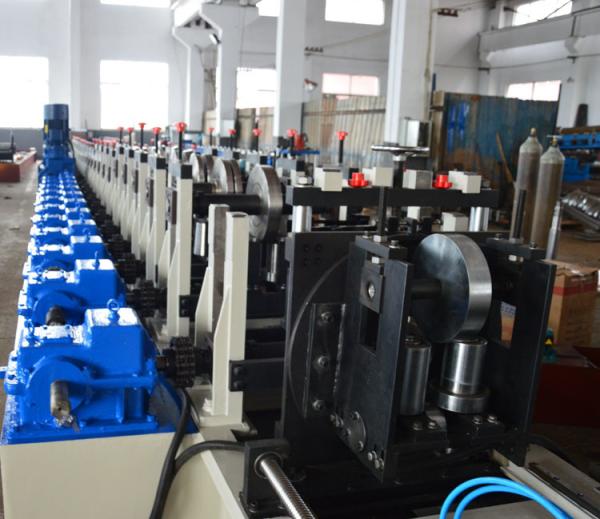

Customized Cold Beam Rack Steel Roll Forming Machine With Fly Saw Cutting


Main Specifications

1. Suitable Plate Material: thickness 1.2-2mm, Galvanize steel or black steel

2. Working Line Speed: 4-5meters / min

3. Forming machine: about 20 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven system: gear box driven

7. Main Power with reducer: 15KW WH Chinese Famous

8. Cutting: Fly saw cutting

9. The whole machine is controlled by industry computer-PLC.

10. Touch Screen--Panasonic Japan

11. Electric parts--Schneider

Machine’s Components

Working Flow of Roll Forming Machine

Decoiling---Guiding and Leveling----Roll Forming----Cutting----Product Collecting


Machine components

3 ton hydraulic De-coiler

Diameter: 460-520mm expansion.

Expansion: hydraulic

Capacity: 3000kg per mandrel

Max Coil Width: 500mm

Leveling device

7 rolls leveling, 3 rolls up and 4 rolls down, roller leveler rolls are more smaller, get flatting better

Diameter is Ø 70mm

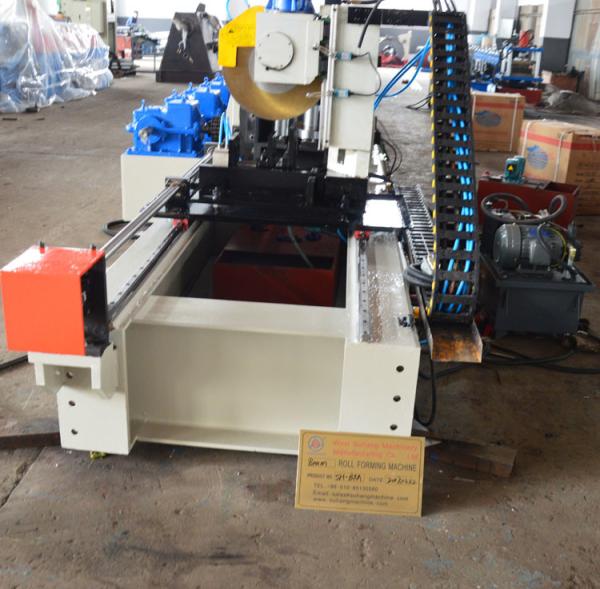

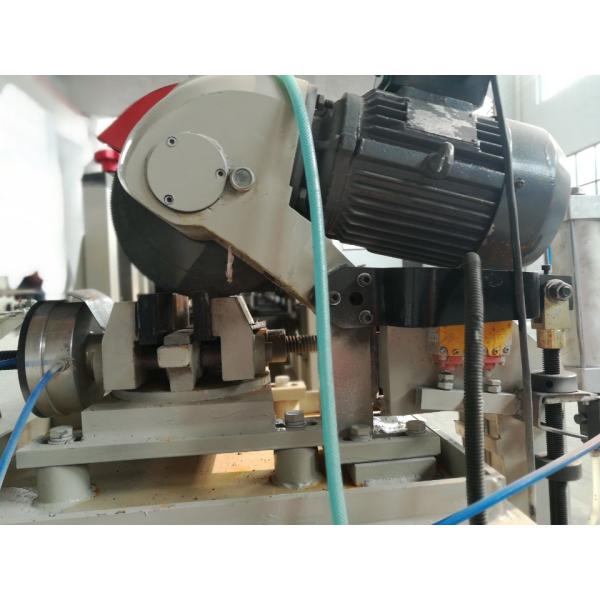

Cutting: Fly saw cutting

Cutting after forming: Cut the sheet after roll forming to required length, fly saw cutting

Cutting motion: The main machine automatically cut, and the cutter will move on the guide rails forward and back non-stopping.

Length measuring: Automatic length measuring

Tolerance of length: 6m+/- 0.5mm
