Decoiler

1) Material width:460-520mm
2) Material weight:5000kg
3) Max Coil Width: 1250mm

4) Expansion: hydraulic decoiler

Level

1) Working rolls: up 3/down 4
2) Flatting bound: Material thickness 1-2mm
3)Max Leveling Raw Material width: 1000mm

Feeding

Feeding Servo feeding motor: about 7.5KW,Yaskawa(Japanese Brand)
Description: servo feeding can control the punching distance in precision, controlled by PLC, and the feeding tolerance can be+-0.05mm.

The servo motor can control the speed, and can accept the input signal, and react quickly, and performance well

The touch screen can display the rotating speed, the length and the quantity, it can be controlled by the manual and auto modes.

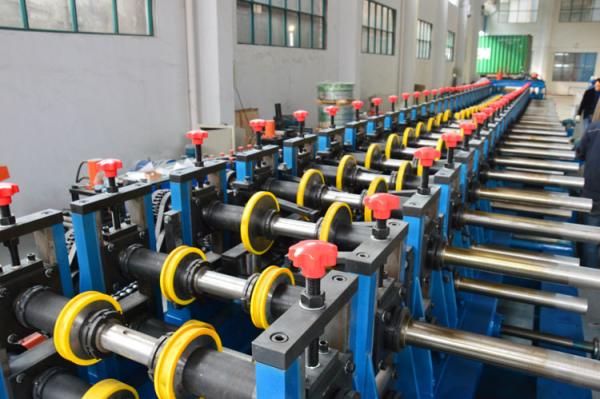

Main roll forming machine

1) Driven Type: 2'' chain
2) Forming frame: 20 sets
3) Forming variety: Bridge frame
4) Material max width: 860mm
5) Material max thickness: ≤ 2.0mm
6) Forming width: 100-600mm
7) Forming height: 50-100mm
8) The diameter of the roller axis: 80mm
9) Roll mould material: Gcr15, quenching treatment: HRC58-62
10) Speed:4-5m/min

Hydraulic cutting

The cutter blade material: Cr12mov HRC58-62 degree

Material of blade: CR12with heat treatment
Cutting after forming: Cut the sheet after roll forming to required length
Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Length measuring: Automatic length measuring
Tolerance of length: 6m+/- 1.5mm

Control system

1)Type: PLC Frequency Control System with touch screen
2)PLC Brand: Japan Panasonic
3)Encoder Brand: Omron

4)Length Error: ±2mm

Output table

1)It is simple and used to load finished product.

2)Length:6m
