0.4-1.2mm Galvanized Steel or Colour Steel Garage Roller Shutter Roll Forming Machine

Technical Parameter

1. Steel Sheet Thickness: 0.4-1.2mm Galvanized Steel Or colour steel (depend on requirement )

2. Cutting Way: Hydraulic cutting or saw cutting

3. Hydraulic station power: 4Kw

4. Transmission way: chain drive

5. Chain: 1 inch single chain

6. Capacity of Decoiler: 3 Ton passive decoiler

7. Forming Speed: 10-15m/min

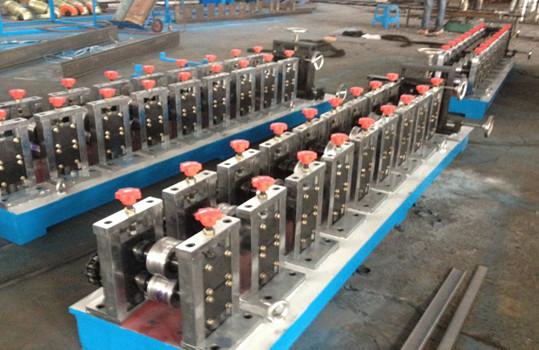

8. Roller Groups: about 20 stations main roller ( depends on the profile drawing)

9. Roller Material: 45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 7.5 Kw

Main Components

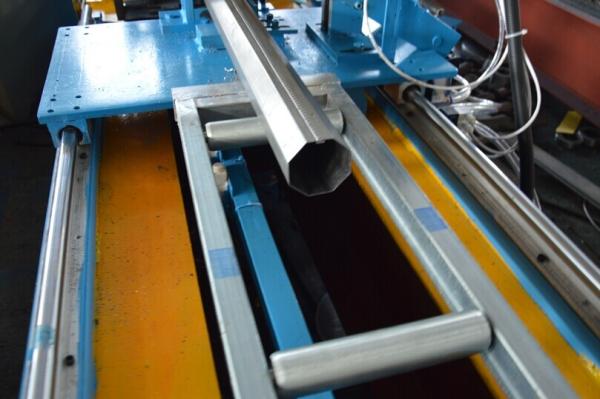

Advantage for Octagon Pipe

Applications

Be the series part of shutter door.

Working Flow of Octagon Pipe

Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables




Profiles of Octagon Pipe

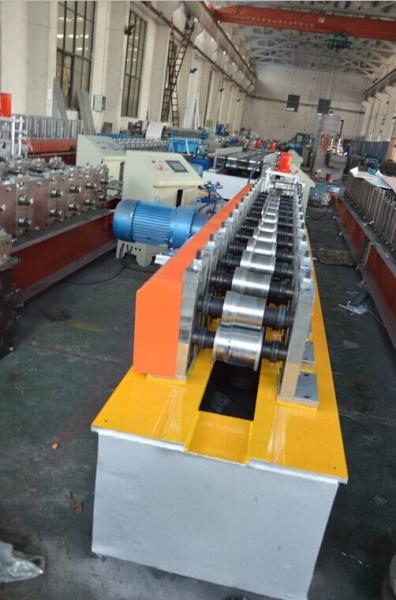

Production process

FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
