100*100 Min 1000*1200 Max 5 Ton Passive decoiler Fire Damper Roll Forming Equipment PLC Control
100*100 Min 1000*1200 Max 5 Ton Passive decoiler Fire Damper Roll Forming Equipment PLC Control
100*100 Min 1000*1200 Max 5 Ton Passive decoiler Fire Damper Roll Forming Equipment PLC Control
100*100 Min 1000*1200 Max 5 Ton Passive decoiler Fire Damper Roll Forming Equipment PLC Control
Specifications
Brand Name :
SUSSMAN
Model Number :
SS-FD
Certification :
CE
Place of Origin :
WUXI CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
65-75 days after deposit
Packaging Details :
standard packing
Main Motor Power :
11KW
Material Thickness :
1.5-2.0mm
Rolling Stations :
16
Description

100*100 Min 1000*1200 Max 5 Ton Passive decoiler Fire Damper Roll Forming Machine

Fire Damper Technical Parameter

1. Steel Sheet Thickness: 1.5-2mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 18-10m/min
7. Roller Groups: about 16 stations
8. Roller Material: GCr15, high frequency quenching treatment, HRC58-62
9. Feeding material: galvanized steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main motor power:11 Kw




Fire Damper Main Components

S.N

Equipment name

 Quantity
1.

5T passive un-coiler

 1 set
2.

Main roll forming machine

1 set
3.

Hydraulic cutting

 1 set
4.

Control system (including control box)

 1 set
5.

Punching

 2 sets















Advantage for Fire Damper

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable





Working Flow of Fire Damper

Decoiler----Feeding---Roll forming---Cutting---Run out tables

100*100 Min 1000*1200 Max 5 Ton Passive decoiler Fire Damper Roll Forming Equipment PLC Control

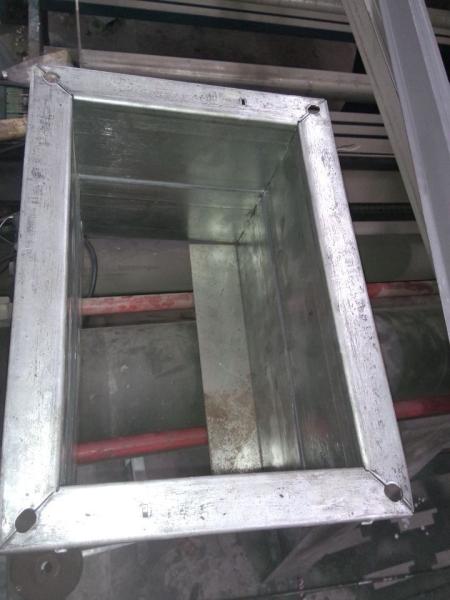

Profiles of Fire Damper

100*100 Min 1000*1200 Max 5 Ton Passive decoiler Fire Damper Roll Forming Equipment PLC Control100*100 Min 1000*1200 Max 5 Ton Passive decoiler Fire Damper Roll Forming Equipment PLC Control
