CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness
CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness
CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness
CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness
CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness
CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness
CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness
CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness
CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness
CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness
CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness
CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness
Specifications
Brand Name :
Sussman
Model Number :
SM-CC
Certification :
SGS.CE.ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability :
10 sets per month
Delivery Time :
60days
Packaging Details :
film and steel
Material thickness :
0.55-0.8mm
Roller material :
Cr40 Steel with quenching
Dirve system :
1 inch single Chain drive
Power supply :
380V, 50Hz, 3Phase
Forming speed :
up to 12m/min
Shaft material :
#45 steel
Description

CNC Metal Stud And Track Roll Forming Machine C Channel Section Profile 0.55-0.8mm Thickness


C Channel Technical Parameter

Items

Specifications

Material of coil

Material Thickness

0.55-0.8 mm galvanized steel

De-coiler

Weight

3 ton manual/5 ton manual

Forming system

Rolling Speed

Up to 12 m/min

Roller Stations

12 stations

Roller Material

Gcr15 Steel with quenching

Shaft Material

45# Steel Diameter 75mm shaft

Maim Motor Power

5.5 kw or 7.5kw

Hydraulic cutting Power

4 kw

Cutting
system

Material Of Cutting

CR12 with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Electrical control system

Electric Source

220V, 60HZ,3 phase/350,50HZ

Control System

PLC with touch screen Japanese Panasonic and Yaskawa Brand

Warranty1 year,lifetime service



Main Components

Uncoiler

Dimensions: 1700mm*1000mm*800mm
Width of feeding: 300mm
Capability: 3Ton
Rnge of expand(by manual): 420mm—510mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual
Color: Blue (or base on customer request)

Feeding

Armed adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
Entrance table-guide: adjustable
Entrance width range:100-250mm
Entrance and guide roller: diameter is ￠65mm, material is sae1045, HRC48-52° surface with chrome

Post cutting system

Machine adopt hydraulic cutting system, When cutting the machine will stop, after cutting will start the motion automatically.
Hydraulic power: 4KW
Hydraulic working pressure: 10Mpa
Cutting after forming: Cut the sheet after roll forming to required length
Material of blade:Cr12 with heat treatment 58-60°2 sets cutter
Length measuring: Automatic encoder lengthmeasuring,

Output table

Frame: welding by tube
Size: about 1.0m long*0.3mwide*0.9mhigh
One out table with support roller
Supporter roller: ASTM 1045 with chrome
Diameter of rollers: 55mm
Color: Blue
Quantity: 2 units

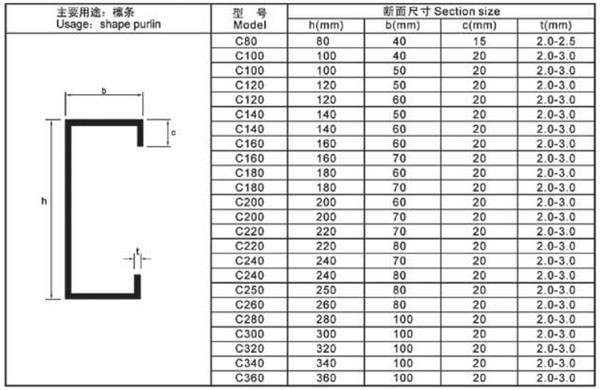

Profile and Drawing Of Product
CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness

Photo Gallery

CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness
CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness

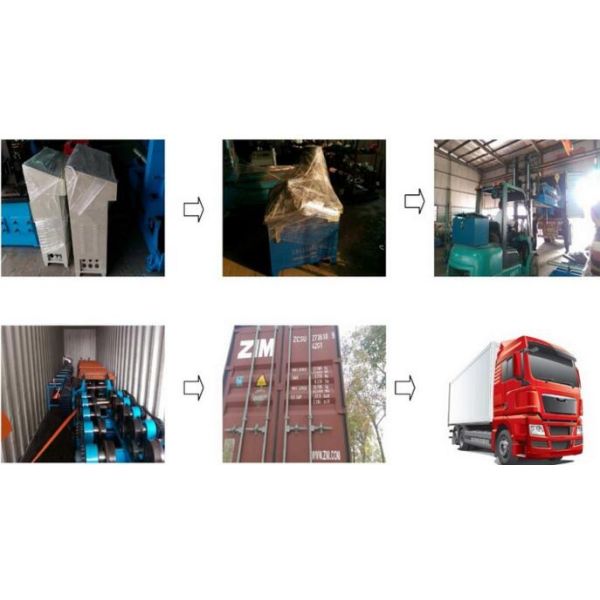

Loading pictures

All rollers will be brushed unti-rusty oil, and packed with waterproof plastic film
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film
All parts inside container will be fixed very well which can keep safety and fixed for long time sea transportation


CNC Metal Stud And Track Roll Forming Machine C U Channel Section Profile 0.55-0.8mm Thickness


Company information

Sussman Machinery is specialized in building materials of light steel structure. Since the factory founded 10 years before,
it always designs and produces various type profile of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine,
the cable tray roll forming machine,Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine,
Down Pipe forming machine, the whole carriage plate for car beam unit,Steel storage unit, etc.
Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey.We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
