12 Stations Cold Roll Former PLC For Metal Shutter Door Production
12 Stations Cold Roll Former PLC For Metal Shutter Door Production
12 Stations Cold Roll Former PLC For Metal Shutter Door Production
12 Stations Cold Roll Former PLC For Metal Shutter Door Production
12 Stations Cold Roll Former PLC For Metal Shutter Door Production
12 Stations Cold Roll Former PLC For Metal Shutter Door Production
Specifications
Brand Name :
Sussman
Model Number :
SS-DR
Certification :
CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per months
Delivery Time :
55-65 days after deposit
Packaging Details :
Standard packing
Material Thickness :
0.7-1.2mm
Forming Speed :
8-10 m/min
Main Motor Power :
7.5Kw
Forming Stations :
12 stations
Description

12 Stations Cold Roll Former PLC For Metal Shutter Door Production ​

Door Rail Technical Parameter

1. Steel Sheet Thickness: 1.5-2mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching, circular pitch: 38.1, number of teeth:13
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 8-10m/min
7. Roller Groups: 12 stations upper and 16 stations down
8. Roller Material: Cr40 steel, high frequency quenching treatment, HRC58-62
9. Material: galvanized steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 7.5 Kw

12. Hydraulic Power: 4Kw

Door Rail Main Components

S.N

Equipment name

 Quantity
1.

3T passive un-coiler

 1 set
2.

Feeding and leveling device

1 set
5.

Main roll forming machine 12 stations drived by chain

 1 set
6.

Hydraulic cutting

 1 set
7.

Control system (including control box)

 1 set
8.

Out tables

 2 sets
9.

Water cooling system

 1 set
















Advantage for Door Rail

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable


Working Flow of Door Rail

Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables


12 Stations Cold Roll Former PLC For Metal Shutter Door Production

Profiles of Door Rail


12 Stations Cold Roll Former PLC For Metal Shutter Door Production

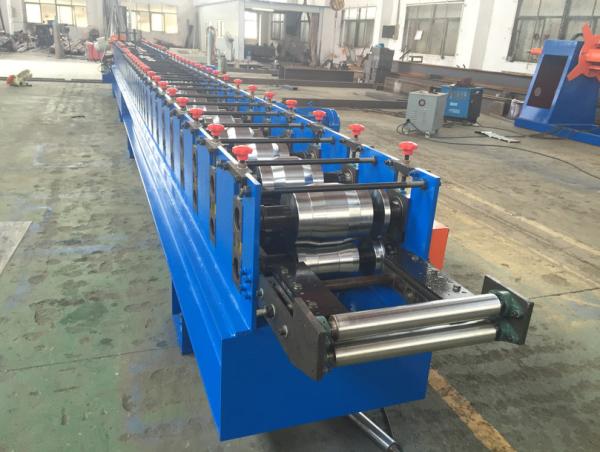

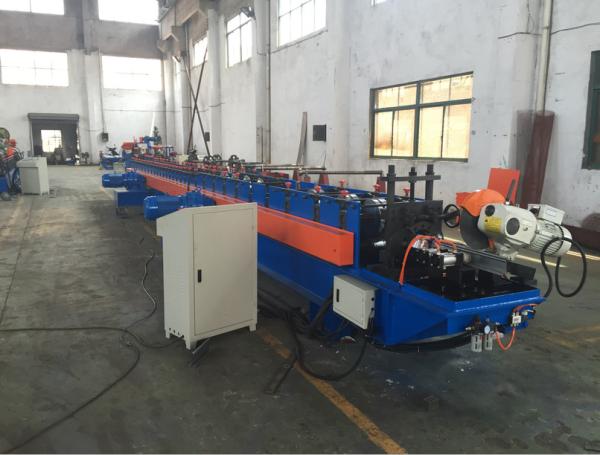

Machine Pics

12 Stations Cold Roll Former PLC For Metal Shutter Door Production

12 Stations Cold Roll Former PLC For Metal Shutter Door Production

12 Stations Cold Roll Former PLC For Metal Shutter Door Production
