Mild Steel Drywall Roof Truss Steel Frame Roll Forming Equipment 12 Stations
Mild Steel Drywall Roof Truss Steel Frame Roll Forming Equipment 12 Stations
Mild Steel Drywall Roof Truss Steel Frame Roll Forming Equipment 12 Stations
Mild Steel Drywall Roof Truss Steel Frame Roll Forming Equipment 12 Stations
Mild Steel Drywall Roof Truss Steel Frame Roll Forming Equipment 12 Stations
Mild Steel Drywall Roof Truss Steel Frame Roll Forming Equipment 12 Stations
Mild Steel Drywall Roof Truss Steel Frame Roll Forming Equipment 12 Stations
Mild Steel Drywall Roof Truss Steel Frame Roll Forming Equipment 12 Stations
Specifications
Brand Name :
Sussman
Model Number :
RF-ST
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
10 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
Material thickness :
0.3-1.0mm galvanized coils or black steel
Profile width :
about 50mm
roller stations :
12stations
main motor power :
7.5Kw
hydraulic cutting power :
4Kw
Machine weight :
about 3.5 tons
Machine size :
4500mm *500mm * 800mm
Description

Mild Steel Drywall Roof Truss Steel Frame Roll Forming Equipment 12 Stations

1. Technical Parameter

Material thickness: 0.8-1.0mm

Material: galvanized coils or black steel

profile width: about 22mm

profile height: about 5.5mm

rolling speed: 10-12m/min

roller stations: 12 stations

roller material: 45# steel, with quenching 60mm shaft

main motor power: 7.5Kw

hydraulic cutting power: 4Kw

cutting blade material: Cr12

power supply: 380V, 50Hz, 3Phase

machine weight: about 3.5Tons

machine size: Length 4500mm* Width 500mm* Height 800mm

2. Working Flow

Feeding with guide—Punching-----Rollforming——Cutting—Products collecting

3. Machine Components

3 tons manual decoiler 1 set
Feeding with guide 1 set
Cutting device 1 set
Main roll forming machine 1 set
PLC control box 1 unit
Hydraulic station 1 unit
Out tables 2 units

4. Features of the production line

1)Professional designing for manufactures roofing & walling

2)Automatically continually manufactures high quality product with PLC.

3)Easy operation : Directly input the data on the touchable screen.

4)Customers decide the profile of products.

5)Saving time and cost owing to high speed running with hydraulic system.

6)One year warranty.

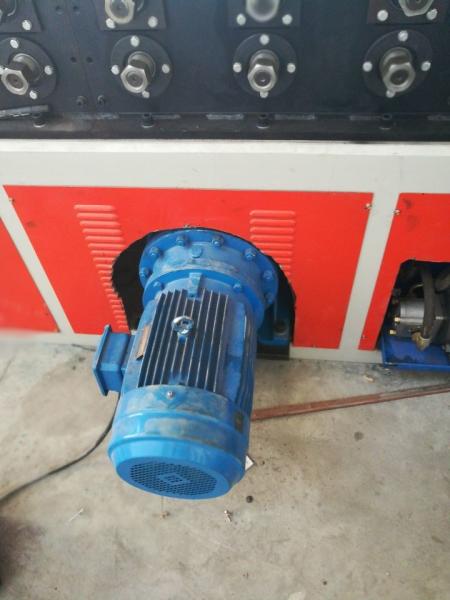

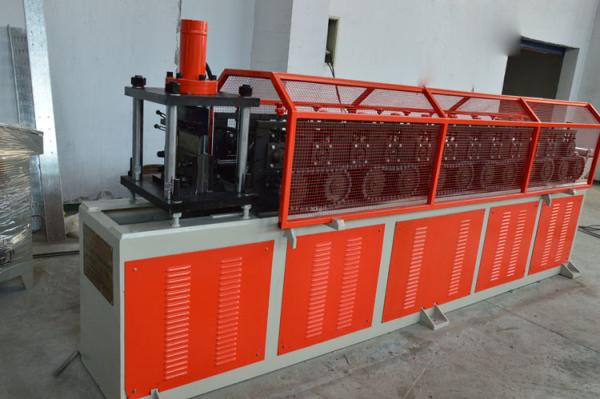

5. Machine Photo

Mild Steel Drywall Roof Truss Steel Frame Roll Forming Equipment 12 Stations
