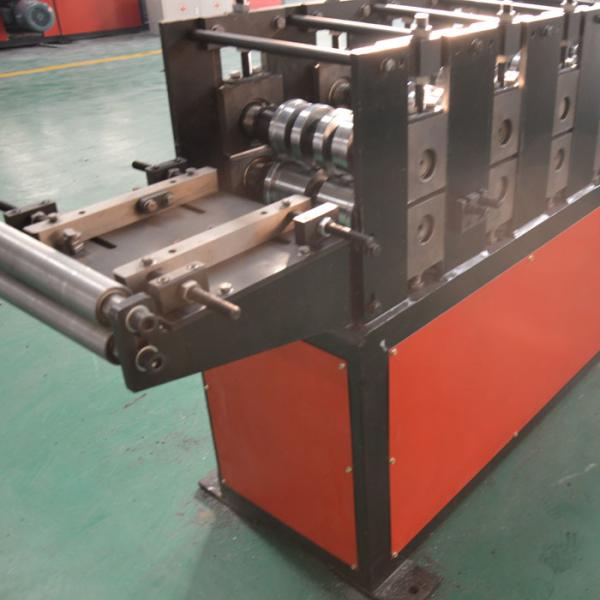

Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Specifications
Brand Name :
Sussman
Model Number :
SM-GT
Certification :
CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C, Western Union, D/P
Supply Ability :
5 sets per months
Delivery Time :
60days after deposit
Packaging Details :
Standard packing
Material Thickness :
0.3-1.0mm
Forming Speed :
10-15 m/min
Main Motor Power :
7.5Kw
Forming Stations :
11 stations
Cutting :
Hydraulic cutting
Transmition :
1 inch chain drive
Description

Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations


Stud And Track Technical Parameter

Main Forming machine Forming steps 13 steps
Shaft diameter 75mm
Machine stand Individual Arch Plate
Machine frame steel plate welded
roller material GCr15
shaft material 45# steel with quenching and tempering
Work speed 12-15m/min
Transport By gear
Power of main machine 5kw
Voltage 380V-50HZ-3P(as required)
Machine dimension 5.5*0.8*1.5m
Machine weight About 3 T
Machine color Yellow and blue(as required)
Usage: In order to keep the product shape and precision, adopts welded sheet structure,
motor reducer drive, chain transmission,roller was chromed which can keep the
molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and lifetime.

Main Components

A. Manual decoiler
1) Capacity: 5tons
2) Loading width: MAX 1500mm
3) Valid expanding range for coil inner diameter: 450-600mm

B. Main roll forming
1) Main motor power: 5kw
2) Drive: Chain
3) Main shaft dia: ¢ 75mm material: 45#forge steel after treatment
4) Roller material: Gcr15 bearing steel and quench treatment hardness 58-62, chrome coated 0.05mm
5) Roll station: 11 groups
6) Raw material: 0.3-1.0mm
7) Valid width after fromed: According to drawing
8) Working speed: 10m--15m/min

C Cutting device
1)Cutting: Hydraulic cutting
2)Auto cutting when reach the set length.
3)Hydraulic power: 7.5KW
4)Blade material: Cr12, quenched 58° -62°
5)Working pressure: 16mpa
6)Cutting tolerance: +/- 1.5mm

D Punching
1)Hydraulic punching AFTER roll forming
2)Power: 5.5kw

E Control system
Type: PLC Frequency Control System with touch screen
PLC Brand: Japan Panasonic
Encoder Brand: Omron
Length Error: ± 2mm
Transducer: Panasonic

Package & Delivery

Packaging Details: Main machine: all rollers will be brushed unti-rusty oil, and packed with waterproof plastic film
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film
All parts inside container will be fixed very well which can keep safety and fixed for long time sea transportation
Delivery Detail: Shipped in 60 days after payment


Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 StationsCustomized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations
Customized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 StationsCustomized 7.5Kw Power Light Steel Stud And Track Roll Forming Machine Roller 13 Stations

Applications

Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss.


Advantage for Stud And Track

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable

Our Service

1. Installation and training of light keel making machine:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other
necessary things.
2. After Service of light keel making machine
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of light keel making machine, we will repair it for free in one year.
