Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment
Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment
Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment
Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment
Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment
Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment
Specifications
Brand Name :
Sussman
Model Number :
SS-MF
Certification :
SGS, ISO9001, CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
35-40 days
Packaging Details :
Standard packing
Material :
Zinc steel or color panited steel
Thickness :
0.5-0.6 mm
Forming speed :
10-15m/min
Forming stations :
11 stations
Cutting way :
hydraulic cutting
Transmission :
1 inc chain drive
Hydraulic power :
4 Kw
Description

Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment

Advantage

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Applications

Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...

Technical parameter

Item Technical data
Steel sheet thickness 0.4-0.8mm (depend on requirement )
Hydraulic power 4kw
Transmission way chain
Chain 1 inc chain
Capacity of Decoiler 3 Ton passive decoiler
Forming Speed 10-12m/min
Roller Groups about 13 stes main roller
Roller Material 45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62
Roller Diameter 100mm
Principal Axis 45# high grade steel with quenching treatment
Main Motor Power 5.5 Kw
Dimension 5500*600*1000mm

Main Components

Machine name Quantity
3 ton manual Decoiler 1 set
Main roll forming machine 1 set
Hydraulic station 1 set
Hydraulic cutting device 1 set
Finished poducts tabels 2 stes
PLC control system 1 set
Ebossing roller 1 set

Furring Channel Working Flow

De-coiler—→feedingwithguide—→main roll forming machine—→cutting—→ run out table

Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment

Furring Channel Profile Drawing

Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment

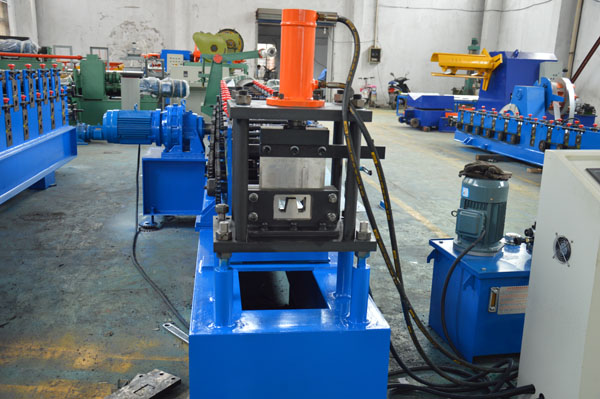

Machine Photo

Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment

Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment

Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment

Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment

Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment
Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment
