hydraulic cutting Stud And Track Roll Forming Machine 3500*500*800mm 1 inc chain drive
hydraulic cutting Stud And Track Roll Forming Machine 3500*500*800mm 1 inc chain drive
hydraulic cutting Stud And Track Roll Forming Machine 3500*500*800mm 1 inc chain drive
hydraulic cutting Stud And Track Roll Forming Machine 3500*500*800mm 1 inc chain drive
hydraulic cutting Stud And Track Roll Forming Machine 3500*500*800mm 1 inc chain drive
hydraulic cutting Stud And Track Roll Forming Machine 3500*500*800mm 1 inc chain drive
Specifications
Brand Name :
Sussman
Model Number :
SS-SF
Certification :
CCC, SGS, ISO9001, CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
35-55 days
Packaging Details :
Standard packing
Material :
Galvanized steel or color steel
Material thickness :
0.4-0.8mm
Forming stations :
13 stations
Transmission :
1 inc chain drive
Power :
380V 50HZ 3 phase
Cutting way :
hydraulic cutting
Size :
3500*500*800mm
Description

Steel Furring Channel Stud And Track Roll Forming Machine Double Production Line Embossing

Technical parameter

1. Steel Sheet Thickness: 0.4-0.8mm (depend on requirement )

2. Hydraulic power: 4Kw

3. Transmission way: chain

4. Chain: 1 inch single chain

5. Capacity of Decoiler: 3 Ton passive decoiler

6. Forming Speed: 10-12m/min

7. Roller Groups: about 13 stes main roller

8. Roller Material: 45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62

9. Roller Diameter: 100mm

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 5.5 Kw

Applications

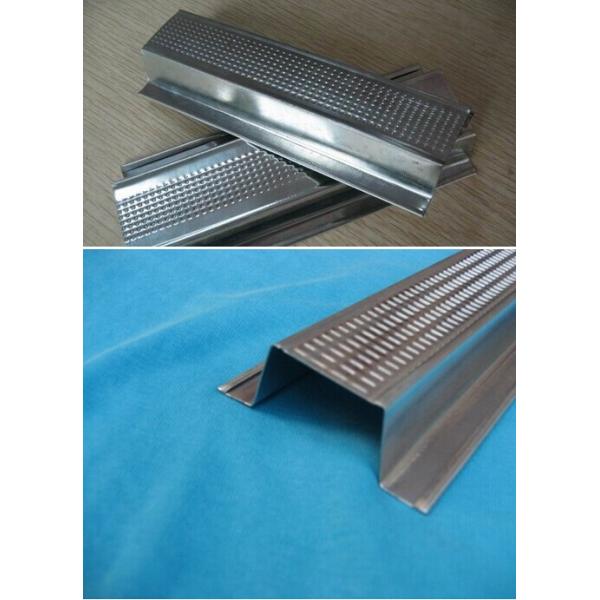

Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...

Furring Channel Working Flow

De-coiler—→feedingwithguide—→main roll forming machine—→cutting—→ run out table

hydraulic cutting Stud And Track Roll Forming Machine 3500*500*800mm 1 inc chain drive

Furring Channel Profile Drawing

hydraulic cutting Stud And Track Roll Forming Machine 3500*500*800mm 1 inc chain drive

Profile drawing

hydraulic cutting Stud And Track Roll Forming Machine 3500*500*800mm 1 inc chain drive

Main Components

Machine name Quantity
3 ton manual Decoiler 1 set
Main roll forming machine 1 set
Hydraulic station 1 set
Hydraulic cutting device 1 set
Finished poducts tabels 2 stes
PLC control system

Advantage for our PU roller shutter

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Rolling Shutter Door Forming Machine Pictures

hydraulic cutting Stud And Track Roll Forming Machine 3500*500*800mm 1 inc chain drive
hydraulic cutting Stud And Track Roll Forming Machine 3500*500*800mm 1 inc chain drive

Loading

hydraulic cutting Stud And Track Roll Forming Machine 3500*500*800mm 1 inc chain drive
