Specifications
Brand Name :
Sussman
Model Number :
SM-GRW
Certification :
CCC, SGS, ISO9001, CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
75 days
Packaging Details :
Standard packing
Material :
Galvanized steel and black steel
Forming speed :
8-15m/min
Roller station :
About 15 stations
Main motor power :
22Kw
Transmission :
Gear box
Cutting way :
Hydraulic cutting
Machine weight :
around 10 Ton
Description

High Speed Three Wave Guardrail Roll Forming Machine with 5.5Kw Hydraulic power cutting

Specifications


1).Take the EUROPEAN Quality Standard;
2). Choose the Best Material and Components.
3). Over 10-Year-Experienced Experts and Top International Sales to Care Your Needs.
4). Offer The Highest Quality but The Best Price in Prevailing Market.
5). Customize for You.

Technical Parameter

Type Description
Feeding width 483mm
Output width 310mm
Tile Thicknes 2.0-3.2mm
Weight about 10 tons
Diameter of shaft 120,45#steel
Material of roller 45#steel,Chrome
Main motor power 22kw
Hydraulic station 5.5kw
Number of rollers 15 stand rollers
Control system PLC computer controller
Speed 8-15m/min
Main Steel H-beam

Main Components

Machine Item Quantity
5 ton hydraulic decoiler 1Set
Leveling device 1Set
Punching machine 1Set
Main roll forming machine 1Set
Hydraulic station 1Set
Cutting device- 1Set
Finished products tabel 2Set
PLC control system 1Set
Spare parts 1Set
Gear box 1Set

Applications

Highway Guard Rail,Expressway,Motorway,etc

High Speed Three Waves Guardrail Roll Forming Machine with 5.5Kw Hydraulic  power cutting

Working Flow

Decoiler ---- Feeding --- Levelling---Punching--- Roll Forming ---- Cutting ---- Run out table

High Speed Three Waves Guardrail Roll Forming Machine with 5.5Kw Hydraulic  power cutting

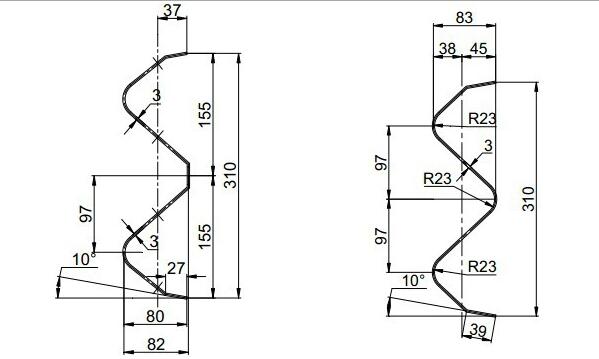

Profiles drawing

High Speed Three Waves Guardrail Roll Forming Machine with 5.5Kw Hydraulic  power cutting


Customes Visiting

High Speed Three Waves Guardrail Roll Forming Machine with 5.5Kw Hydraulic  power cutting

High Speed Three Waves Guardrail Roll Forming Machine with 5.5Kw Hydraulic  power cutting


Our Services

1. Warranty :One year,and we will provide technical support for whole life of the equipment.

2. Delivery time: Within 45 days after deposit receipt your payment

3. Guarantee period: 12months free service/ pay service all the machine life

4. Installation and training

If buyers visit our factory and check the machine, we will teach you how to install and use the machine

and also train your workers/technician face to face.

Without visiting,we will send you user manual and video to teach you to install and operate.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

You are warmly welcome to our company to have a face to face meeting and check the machine
