Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System
Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System
Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System
Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System
Specifications
Brand Name :
Sussman
Model Number :
SS-RC
Certification :
CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per months
Delivery Time :
55-65 days after deposit
Packaging Details :
Standard packing
Material Thickness :
0.3-0.8mm
Forming Speed :
5-10m/min
Main Motor Power :
5.5Kw
Forming Stations :
16 stations
Description

Hydraulic cutting 0.3 - 0.8mm Thick Ridge Cap Roll Forming Machine PLC Control System

Ridge Cap Technical Parameter

1. Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )

2. Hydraulic power: 4Kw

3. Transmission way: 1.2 inch single chain

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 3 ton manual decoiler

6. Forming Speed: 5-10m/min (not include cutting and punching stop time)

7. Roller Groups: 16 stations

8. Roller Material: GCr15 grade steel, quenching treatment

9. Material: galvanized steel or color-coated steel

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 5.5 Kw

Ridge Cap Main Components

S.N

Equipment name

 Quantity
1.

3T manual un-coiler

 1 set
2.

Feeding and leveling device

1 set
5. Main roll forming machine 16 stations drived by single chain 1 set
6.

Hydraulic station

 1 set
7.

Control system (including control box)

 1 set
8.

Out tables

 2 sets
9.

Spare parts

 1 package

Advantage for Ridge Cap

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Working Flow of Ridge Cap

Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables

Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

Profiles of Ridge Cap

Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

Machine pictures

Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

Samples

Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

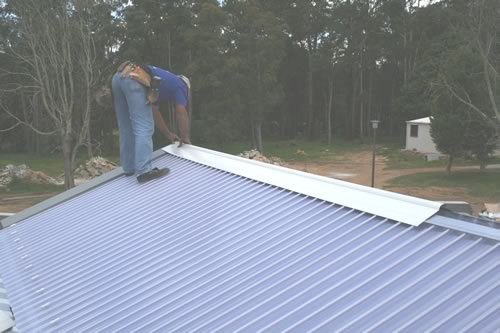

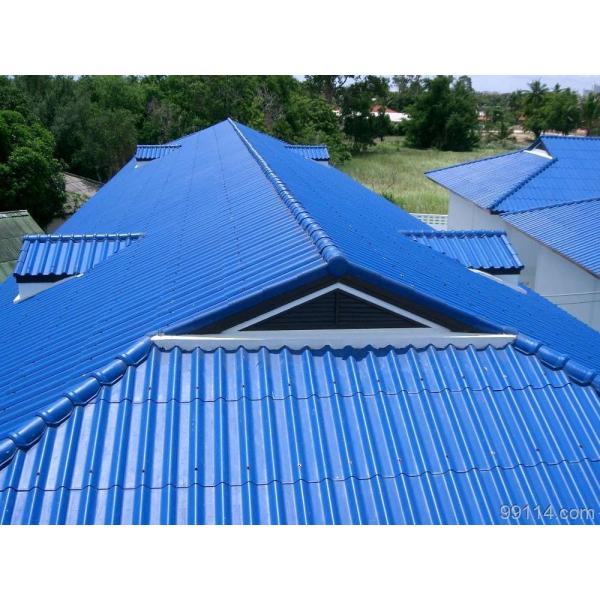

Application

Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System
