5.5Kw Hydraulic Power 1.2 Inch Single Chain Double Layer Roll Forming Machine
5.5Kw Hydraulic Power 1.2 Inch Single Chain Double Layer Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SS-DL
Certification :
CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per months
Delivery Time :
55-65 days after deposit
Packaging Details :
Standard packing
Material Thickness :
0.3-0.8mm
Forming Speed :
5-10m/min
Main Motor Power :
7.5Kw
Forming Stations :
16 stations
Hydraulic power :
5.5Kw
Description

5.5Kw Hydraulic Power 1.2 Inch Single Chain Double Layer Roll Forming Machine

Application

Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap

Advantage for Ridge Cap

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable


Technical Parameter

1. Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )
2. Hydraulic power: 5.5Kw
3. Transmission way: 1.2 inch single chain
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton manual decoiler
6. Forming Speed: 10-12m/min (not include cutting and punching stop time)
7. Roller Groups: 16 stations upper and 16 stations down
8. Roller Material: 45# grade steel, quenching treatment
9. Material: galvanized steel or color-coated steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 7.5 Kw

Main Components

S.N

Equipment name

 Quantity
1.

3T manual un-coiler

 1 set
2.

Feeding and leveling device

1 set
5. Main roll forming machine 16 stations drived by single chain 1 set
6.

Hydraulic station

 1 set
7.

Control system (including control box)

 1 set
8.

Out tables

 2 sets
9.

Spare parts

 1 package















Working Flow of Ridge Cap

Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables


5.5Kw Hydraulic Power 1.2 Inch Single Chain Double Layer Roll Forming Machine



Profiles

5.5Kw Hydraulic Power 1.2 Inch Single Chain Double Layer Roll Forming Machine

5.5Kw Hydraulic Power 1.2 Inch Single Chain Double Layer Roll Forming Machine

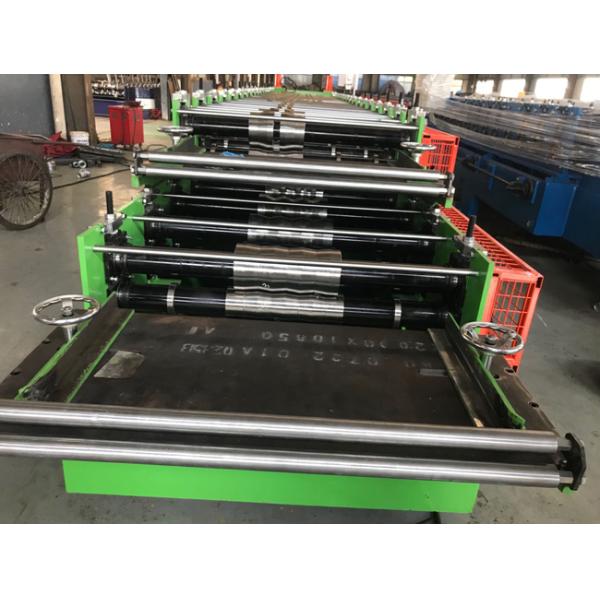

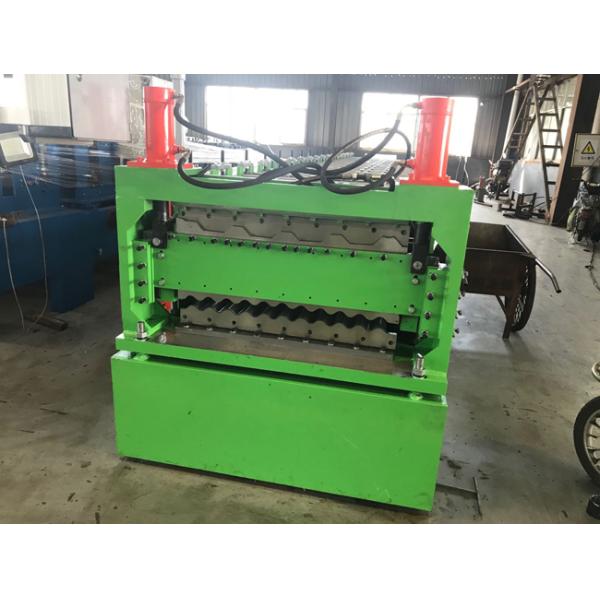

Machine pictures

5.5Kw Hydraulic Power 1.2 Inch Single Chain Double Layer Roll Forming Machine

5.5Kw Hydraulic Power 1.2 Inch Single Chain Double Layer Roll Forming Machine

Loading Pics

5.5Kw Hydraulic Power 1.2 Inch Single Chain Double Layer Roll Forming Machine5.5Kw Hydraulic Power 1.2 Inch Single Chain Double Layer Roll Forming Machine
5.5Kw Hydraulic Power 1.2 Inch Single Chain Double Layer Roll Forming Machine5.5Kw Hydraulic Power 1.2 Inch Single Chain Double Layer Roll Forming Machine
