Specifications
Brand Name :
Sussman
Model Number :
SS-MSDB
Certification :
CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per months
Delivery Time :
55-65 days after deposit
Packaging Details :
Standard packing
Material Thickness :
0.7-1.2mm
Forming Speed :
12-15 m/min
Main Motor Power :
7.5Kw * 2
Forming Stations :
27 stations
Description

13 Teethes Chain Transmission 12 - 15m/min Metal Shutter Door Roll Forming Machine PLC Precise Control


Shutter Door Technical Parameter


1. Steel Sheet Thickness: 0.7-1.2mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching, circular pitch: 38.1, number of teeth:13
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 12-15m/min
7. Roller Groups: 27 stations upper and 16 stations down
8. Roller Material: Cr40 steel precision-machined, high frequency quenching treatment, HRC58-62
9. Material: galvanized steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 7.5 Kw * 2

12. Water cooling system

Shutter Door Main Components

S.N

Equipment name

 Quantity
1.

3T passive un-coiler

 1 set
2.

Feeding and leveling device

1 set
5.

Main roll forming machine 27 stations drived by chain

 1 set
6.

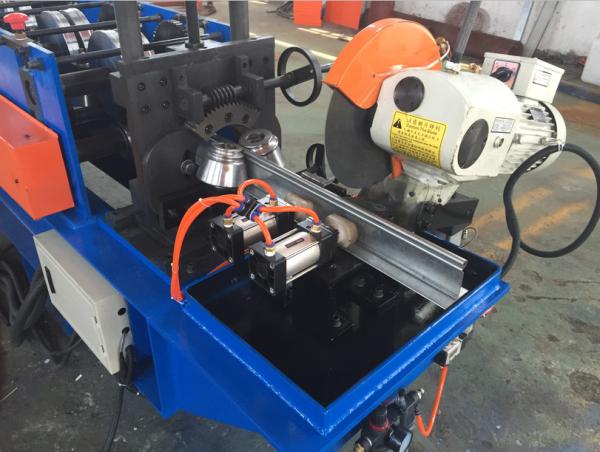

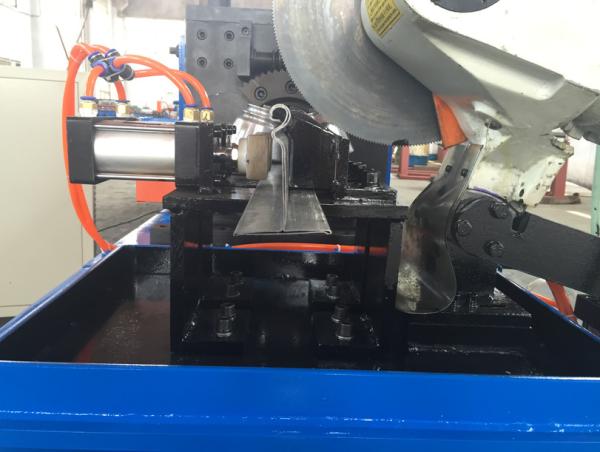

Fly saw cutting

 1 set
7.

Control system (including control box)

 1 set
8.

Out tables

 2 sets
9.

Water cooling system

 1 set
















Advantage for Shutter Door Bottom

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable


Working Flow of Shutter Door Bottom

Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables


13 Teethes 12 - 15m/min High Speed Shutter Door Roll Forming Machine with PLC Control



Profiles of Shutter Door


13 Teethes 12 - 15m/min High Speed Shutter Door Roll Forming Machine with PLC Control

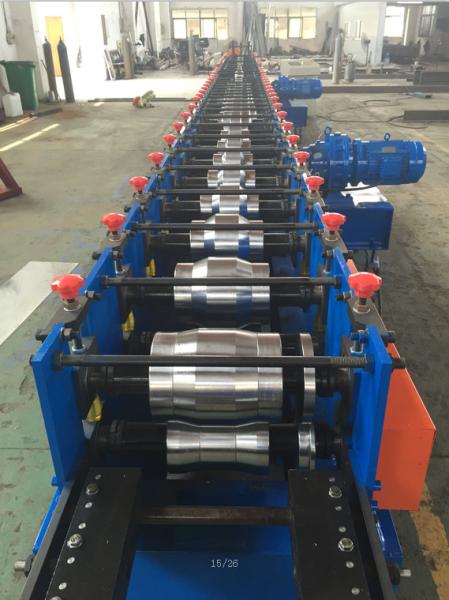

Machine pictures

13 Teethes 12 - 15m/min High Speed Shutter Door Roll Forming Machine with PLC Control

13 Teethes 12 - 15m/min High Speed Shutter Door Roll Forming Machine with PLC Control

13 Teethes 12 - 15m/min High Speed Shutter Door Roll Forming Machine with PLC Control

13 Teethes 12 - 15m/min High Speed Shutter Door Roll Forming Machine with PLC Control
