Galvanized steel 0.36 Mm-0.6 Mm Thickness 914mm Width AG And R Panel Double Layer Roof/Wall Panel Roll Forming Machine


1. Technical Parameter

Number Items UnitType RF-DL
1 Steel Thickness mm 0.3-0.8mm Colored Steel/ Galvanized Steel Coil
2 Forming Speed m/min About 8-15
3 Roller stands stand

Upper layer is about 20 stations

Lower layer is about 18 stations
4 Roller Material mm 45# steel, coated with chrome
5 Shaft material and diameter mm Ф76 45# steel, coated with chrome
6 Main Motor Power Kw 7.5
7 Hydraulic cutting Power Kw 4
8 Hydraulic pressure Mpa 12
9 Power Supply 380V, 60 Hz, 3Phase
10 Tolerance mm +-1.5
11 Material of cutting Cr12Mov HRC58-62
12 Control system PLC with touch screen
13 Main machine weight T 10T


2. Machine List

5 tons passive de-coiler

1 set

Guiding Platform

1 set
Double pre-cutting device 1 set

Main roll forming machine

1 set

Hydraulic cutting machine

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

Passive Out table

2 units

Safety cover

1 unit



3. Profile Drawing

This double roof/wall panel machine that can form AG and R panels.
Minimum Coil width for AG panel is 1,038.22mm and R panel minimum is 1,079.5mm finished measurement for both panels is 914.5.
Thickness range 0.360mm-0.666mm.
Galvanized Steel Wall Panel Roll Forming Machine 0.36 Mm-0.6 Mm 914mm AG And R Panel Double Layer Roof
Galvanized Steel Wall Panel Roll Forming Machine 0.36 Mm-0.6 Mm 914mm AG And R Panel Double Layer Roof


4. Main Features

1.This double roll forming machine can produce two different profiles with one machine, sharing same machine base frame, un-coiler, PLC control system, which can much save of your cost.

2.More reasonable forming process design; More roller steps with competitive price.

3.The whole line consists of un-coiler, double pre-cutting system, feeding system, roll forming machine with protect guarding cover, post-cut device, PLC control system, and so on.


5. Machine Photo

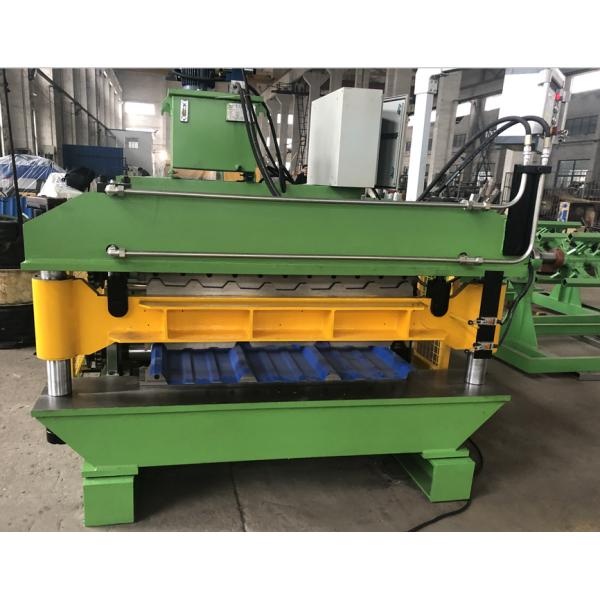

Galvanized Steel Wall Panel Roll Forming Machine 0.36 Mm-0.6 Mm 914mm AG And R Panel Double Layer Roof
Galvanized Steel Wall Panel Roll Forming Machine 0.36 Mm-0.6 Mm 914mm AG And R Panel Double Layer Roof
