C Shaped Lipped Channel Strut Channel Roll Forming Machine 1.2 - 2.6mm With 22KW Motor

1. C Channel Machine Technical Parameter

2. C Channel Machine Components

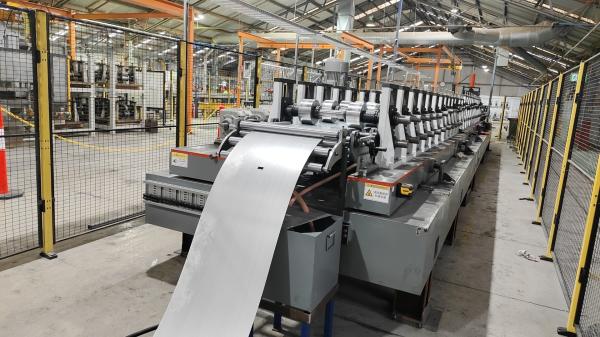

C strut roll forming machine can produce several shape products as profile.

The different size of channel is adjusted by the spacers between up and downside rollers. Because the design of these spacers is half circle, then two joint together, so when adjusting, needn't remove the rollers, it is very easy and convenient.

when change different specification, need to change the cutting mould.

3. C Strut Channel Application

1.These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems.

2.Solar frame panel is used to mount, brace, support, and connect lightweight structural loads in building construction.

Machine maintenance
Daily maintenance with meticulous care plays an important part in extension the equipments’ operation time and the quality of rolling plank. Therefore, please do the following things in your daily.

1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after Drying.
