Adjustable PV Rack Strut Channel Roll Forming Machine with 2-3mm Thickness

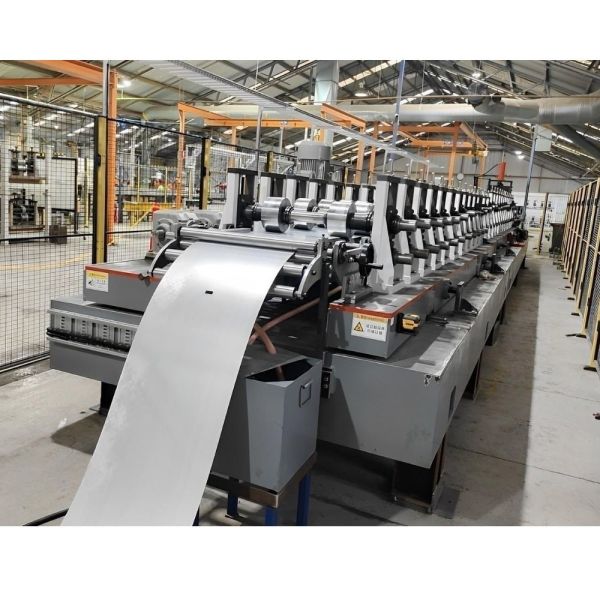

We exported this C Shaped Strut Roll Forming Machine this year, and dispatched our engineer to help the 5B Australia PTY. LTD to debug the machine. Our machine, our electric parts, our winding all meet Australian standards! For the Roll Forming Machine, the width and height are all automatically adjustable. If you are interested in, welcome to inquiry!

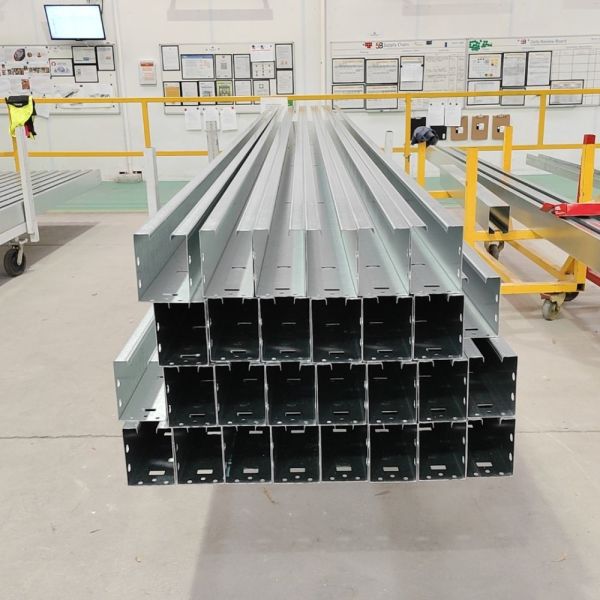

Strut channel roll forming machine is also called like seismic support roll forming machine or seismic channel roll forming machine, its product is used to mount, brace, support, and connect lightweight structural loads in building construction. Ourstrut channel roll forming machine is suitable to produce strut channels with 12 gauge(2.6mm) or 14 gauge(1.9mm) thick sheet metal (normally range 2-2.5mm), raw material could be Hot-rolled and cold rolled steel, Hot-dip galvanized sheet, Pre-Galvanized Steel, Mill(Plain/Black) Steel, Aluminum, Stainless Steel etc. And according to slot type, our machine could produce solid channel, slotted channel, half slotted channel, long slotted channel, punched channel, punched and slotted channel etc.

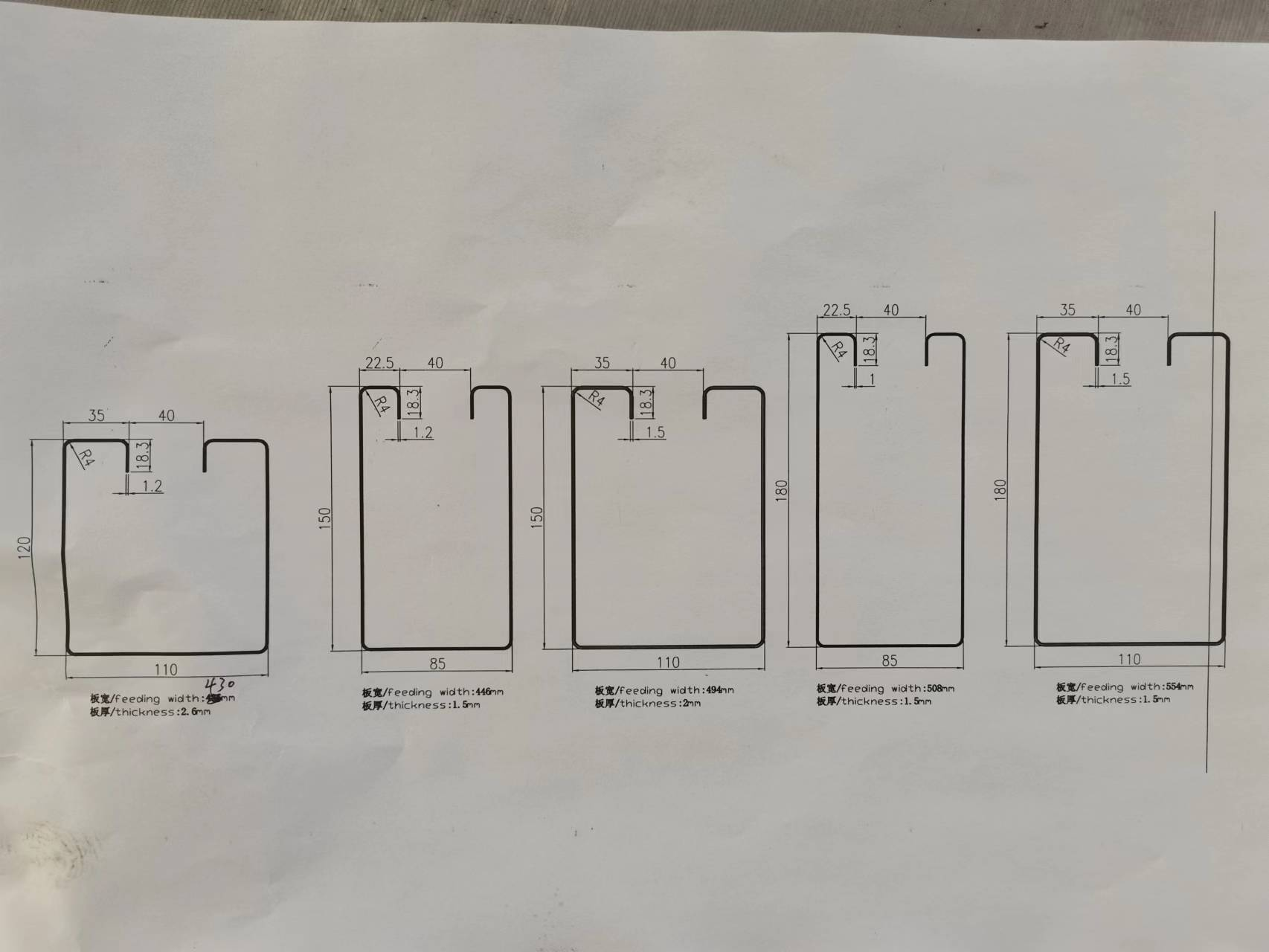

The C profile strut channel machine is to make size 85x150 mmm, 85x180mm, 110x120mm, 110x150mm and 110x180mm, material thicknesses: 2.00 and 2.50 mm hot-dip galvanized And the machine is according to the EN 2081:2011 or EN ISO 4042:2001

2,Machine Layout

3. Solar Strut Channel Application






6. Our Services

Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available.
1. As the factory, we will recommend the right profile machine to customer, and give the professional advice.
2. Confirm the final decision during the discussion.
3. The sale person will give customer updates for each period during the production process.
4. We finish the machine within the confirmed date, and shipping the goods to customers safely and faster.
5. Provide the right documents to customers.
6. Give the tips(include photos, videos and manual) for installation and operation.
7. If the buyer can not make the installation or machine appeared the problems, if possible, we will arrange our engineer to debug within one week. The charge for technician include the visa, round tickers, food, accommodation and USD100/person/day for salary.
