Specifications
Brand Name :
Sussman
Model Number :
CZ
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 40,000 Set
Payment Terms :
T/T
Supply Ability :
2 sets per month
Delivery Time :
30 days
Packaging Details :
Naked packing
Type :
CUZ Purlin Section Roll Forming Machine
Motor Power :
18.5KW
Width :
100-300mm
Height :
40-100mm
Description

Quick Change S355Mpa Galvanized Steel 1mm-3 mm C/U/Z Section Steel Frame Purlin Roll Forming Machine

Description

This C/Z Quick Interchangeable Roll Forming Machine adopts a special structure. The rollers for C&Z are changed very quickly without dismantle any parts . One machine can produce all specifications of C/Z/U purlins . Crimples are optional to increase rigidity of purlins. The width of the purlins can be automatically adjusted by PLC. If you need more economy then can be handle wheel adjusting as well. This machine we adopt Post-cutting and punching system, only need one cutting to make more size, the cutting blades can move up and down, left and right to save time to change blades.

The width, the height, the flanger, C shape to Z shape are all adjustable automatically.

Technicial Speciafication

C/Z Quick Interchangeable Machine
No
Item
Specification
Optional
1
Suitable material
Type:Galvanized Coil, PPGI, Carbon steel Coil
Thickness(mm):1.5-3.0
Yield strength: 250 - 550MPa
Tensil stress( Mpa):G350Mpa-G550Mpa
2
Nominal forming speed(m/min)
10-15
Or according to your requirement
3
Forming station
18
4
Decoiler
Manual decoiler
Hydraulic decoiler or double head decoiler
5
Main machine motor
China famous Brand
Siemens
6
PLC brand
Panasonic
Siemens
7
Inverter brand
Yaskawa
8
Driving system
Chain drive
Gearbox drive
9
Rollers’ materail
GCr15
Cr12
10
Station structure
Wall panel station
Forged Iron station
Or torri stand structure
11
Punching system
Yes
Hydraulic punching station or Punching press
12
Cutting system
Post-cutting
Post- universal cutting
13
Power supply requirement
380V 50Hz
Or according to your requirement
14
Machine color
Industrial blue
Or according to your requirement

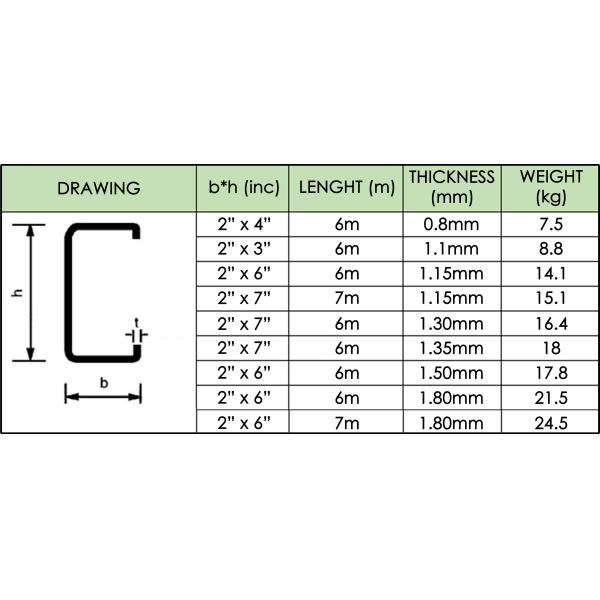

Profile Drawing:

Section Steel Frame Purlin Roll Forming Machine S355Mpa Galvanized Steel 1mm-3mm C/U/Z

Section Steel Frame Purlin Roll Forming Machine S355Mpa Galvanized Steel 1mm-3mm C/U/Z

Machine List:

5T Passive Un-coiler 1 set
Feeding with guide 1 set
Main roll forming machine 1 set
Hydraulic punching device 1 set
Control box 1 unit
Hydraulic station 1 unit
Output tables 1 unit
Spare parts 1 package
Safety cover 1 unit
Hydraulic cutting device 1 unit
Punching Mould 2 sets

Main Components of the Machine

1. Hydraulic Decoiler with Breaking device is equipped for coil processing.

2. Leveler

3. Hydraulic punching system

4. Pre-Shearing System

5. Rollformer with tooling

6. Run Out Table or automatic stacking device

7. Panasonic (Japan) PLC and MCGS touch screens are used for data processing and setting.

8. Roll forming speed is 8 - 12m / min.

Section Steel Frame Purlin Roll Forming Machine S355Mpa Galvanized Steel 1mm-3mm C/U/Z

Pictures of the product:

Section Steel Frame Purlin Roll Forming Machine S355Mpa Galvanized Steel 1mm-3mm C/U/Z

Section Steel Frame Purlin Roll Forming Machine S355Mpa Galvanized Steel 1mm-3mm C/U/Z

Section Steel Frame Purlin Roll Forming Machine S355Mpa Galvanized Steel 1mm-3mm C/U/Z

Applications of C&Z purlin include:

1. Industrial construction
2. Hall and warehouse construction
3. Extension construction and renovation
4. Agricultural projects

Advantage:

1. Produce different purlin sizes without changing rollers or spacers.

2.No need to change cutter for different sizes.

3. Easy operation, low maintenance cost

4. Infinite sizing(any size within machine range), helps to save material

5. Optional Punch hole at any position of purlin web side and flange side
