Specifications
Brand Name :
Sussman
Model Number :
RF-CT
Place of Origin :
Wuxi, China
Certification :
CE, SGS, ISO
MOQ :
1 Set
Price :
USD55000-105000/SET
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5 sets per month
Delivery Time :
8-10 weeks
Packaging Details :
Plastic and film
Pump :
Bosch
Roller material :
GCr15
Motor :
Siemens
Material of Roller :
Gcr15, Quench HRC58-62 Plated Chrome
Raw material :
Galvanized Steel Coils
Shaft diameter :
45# Steel
Main motor power :
22Kw，18.5KW
Weight :
3.5T
Description

Product Description:

Cable Tray Roll Forming Machine

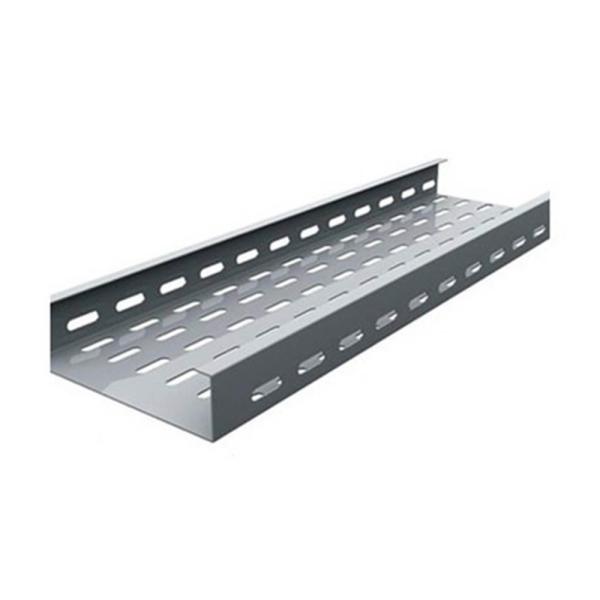

Cable tray roll forming machines are commonly used for cable management in commercial and industrial construction. This advanced roll former is capable of producing a variety of cable trays, such as solid bottom cable tray, trough cable tray, channel cable tray, perforated cable tray, non-perforated cable tray, and trunking cable tray. Additionally, different raw materials, including hot-dip galvanized steel, pre-galvanized steel, hot-rolled, cold-rolled steel, stainless steel, and aluminum, can be used. For these materials, the thickness range is 0.6mm-1.2mm or 1-2mm.

Moreover, you can set up 10 different lengths for cable tray production. Aside from the cable tray roll forming machine, we are also able to manufacture other machines,such as strut channel roll forming machine, DIN rail roll forming machine, and electrical enclosure box roll forming machine.

45# Steel Cable Tray Manufacturing Machine With 28-32 Roller Stations45# Steel Cable Tray Manufacturing Machine With 28-32 Roller Stations

Features:

Technical Data:

5.1. Suitable Plate Material:

  • Steel thickness: 1-2mm cold rolled steel and galvanized steel
  • Profile width after forming: 100-600mm automatic change
  • Height of profile: 50-150mm
  • Sheet length: 2000-6000mm

5.2. Working Speed: About 2-3 meters / min

5.3. Forming Steps: about 20 stations

5.4. Material of Roller: Cr12, Quench HRC58-62 Plated Chrome

5.5. Material of Shaft: 45# Advanced Steel (Diameter: 90mm), thermal refining

5.6. Driven system: Chain Driven

5.7. Main Power with reducer: 22KW WH Chinese Famous

5.8. Cutting: Hydraulic Cutting Cr12mov

5.9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

5.10. The whole machine is controlled by industry computer-PLC.

5.11 PLC--PLC-Delta

5.12 Encoder--Omron, Japan

5.13 Electric parts--Schneider

5.14 Adjust the width by the motors and the rails, controlled by the PLC system.

45# Steel Cable Tray Manufacturing Machine With 28-32 Roller Stations45# Steel Cable Tray Manufacturing Machine With 28-32 Roller Stations

Technical Parameters:

Parameter Value
Power supplier 380V, 50 Hz, 3Phase
Motor Siemens
Working Speed 12-15 Meters / Min
Width of the profile 200-500mm
Rollers 18-20
Material of Roller Gcr15, Quench HRC58-62 Plated Chrome
Main motor power 22Kw,18.5KW
Shaft diameter 45# Steel
Encoder Omron
Pump Bosch
45# Steel Cable Tray Manufacturing Machine With 28-32 Roller Stations

Applications:

Sussman's Cable Tray Roll Forming Machine (RF-CT) is an ideal tool for producing cable trays with high efficiency. It is made with quality materials in Wuxi, China and certified by CE, SGS, ISO. This machine is equipped with 28-32 roller stations and 45# steel shaft diameter, allowing it to work at a speed of 12-15 meters per min. Additionally, it can form cable trays with heights ranging from 50-200mm and 18-20 rollers. This machine is suitable for producing cable trays with superior quality and accuracy. It is suitable for large-scale production in the fields of cable tray production, and cable tray roll and cable tray forming.

45# Steel Cable Tray Manufacturing Machine With 28-32 Roller Stations

Customization:

Customized Cable Tray Roll Forming Machine

This Cable Tray Roll Forming Machine has a brand name of Sussman and a model number of RF-CT. It is originated from Wuxi, China, and holds certifications of CE, SGS, and ISO. It is equipped with a Bosch pump, about 28-32 stations of rollers, and a Siemens motor. The weight of this machine is 3.5T, and the power supplier is 380V, 50 Hz, 3Phase.

This machine is suitable for Cable Tray Manufacturing, Cable Tray Rolling, and Cable Tray Forming.

45# Steel Cable Tray Manufacturing Machine With 28-32 Roller Stations

Support and Services:

Cable Tray Roll Forming Machine Technical Support and Service
  • We provide technical support for our Cable Tray Roll Forming Machine, including installation, maintenance, and troubleshooting.
  • We offer a wide range of spare parts and consumables for our Cable Tray Roll Forming Machine, including belts, bearings, and other components.
  • We provide scheduled maintenance and repair services for our Cable Tray Roll Forming Machine.
  • We offer training and consultation on the proper use of our Cable Tray Roll Forming Machine.
  • We provide warranty support for our Cable Tray Roll Forming Machine.
45# Steel Cable Tray Manufacturing Machine With 28-32 Roller Stations

Packing and Shipping:

Packaging and Shipping of Cable Tray Roll Forming Machine
  • The Cable Tray Roll Forming Machine will be securely packaged in wooden pallets.
  • The wooden pallets are covered with a waterproof material for protection from any environmental factors.
  • The machine is then covered with plastic wrap for protection from dust and moisture.
  • The machine is packaged in a box labeled with the product information.
  • The box is then securely sealed and shipped with appropriate shipping methods.
