Ceiling Framing System Truss Roll Forming Machine 0.8mm Omega Roof Batten 12m/Min
Ceiling Framing System Truss Roll Forming Machine 0.8mm Omega Roof Batten 12m/Min
Ceiling Framing System Truss Roll Forming Machine 0.8mm Omega Roof Batten 12m/Min
Ceiling Framing System Truss Roll Forming Machine 0.8mm Omega Roof Batten 12m/Min
Ceiling Framing System Truss Roll Forming Machine 0.8mm Omega Roof Batten 12m/Min
Ceiling Framing System Truss Roll Forming Machine 0.8mm Omega Roof Batten 12m/Min
Ceiling Framing System Truss Roll Forming Machine 0.8mm Omega Roof Batten 12m/Min
Ceiling Framing System Truss Roll Forming Machine 0.8mm Omega Roof Batten 12m/Min
Specifications
Brand Name :
Sussman
Model Number :
SM- CM
Certification :
SGS.CE.ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD16500-USD18500 Per set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60 days after get the first payment
Packaging Details :
Standard Packing with steel wire fixed and plastic film coated
Type :
Omega Roll Forming Machine
Material thickness :
0.3-0.8mm Galvanized steel sheet
Roller material :
45#forge steel, coated with chrome
Forming speed :
10-12m/min(not include cutting time)
Description

Ceiling Framing System Omega Roof Batten Truss Roll Forming Machine

Our Top Hats are lightweight structural sections, perfect for use in a range of commercial, domestic and rural construction applications such as framing & battens in garages, sheds, fencing and carports.

They are manufactured in high tensile galvanised steel for high strength and long life. The ease of lapping and screw fixing makes them extremely versatile.

Technical Parameter

Items

Specifications

Material of coil

Material Thickness

0.3-0.8mm galvanized

De-coiler

Weight

3 ton manual

Forming system

Roller Stations

13 stations

Roller Material

Cr12 Steel with quenching

Shaft Material

45# Steel Diameter 70mm shaft

Maim Motor Power

7.5 kw

Hydraulic cutting Power

4 kw

Cutting
system

Material Of Cutting

CR12 with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Electrical control system

Electric Source

220V, 60HZ,3 phase

Control System

PLC with touch screen Japanese Panasonic and Yaskawa Brand

Way Of Drive

1 inch single chain

Size of machine

Length 7500mm* Width 800mm* Height 1000m

Omega Purlin Making Line Main Components

No. Name Qty
1 Manual decoiler 1
2 Hydraulic punching machine 1
3 Main roll forming machine 1
4 PLC Control box 1
5 Hydraulic Pump Station 1
6 Output table 1

Working Flow of Roll Forming Machine

Feeding with guide—Roll forming——Cutting—Products collecting


Ceiling Framing System Truss Roll Forming Machine 0.8mm Omega Roof Batten 12m/Min

Standard Profile and Drading Of Product


Ceiling Framing System Truss Roll Forming Machine 0.8mm Omega Roof Batten 12m/Min

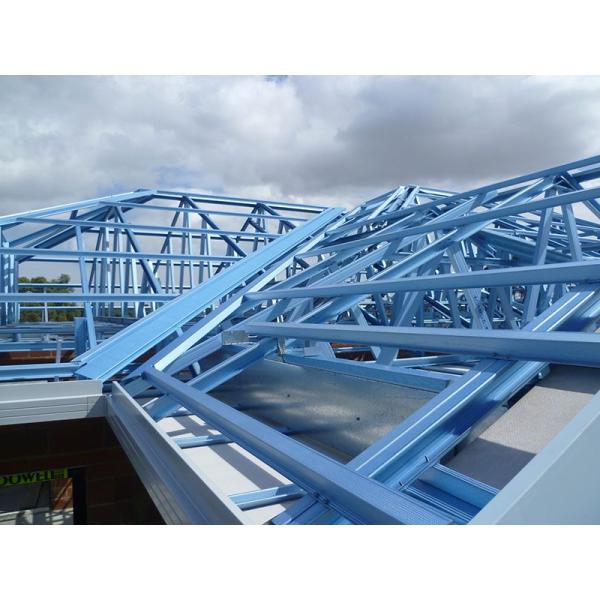

Application:

Ceiling Framing System Truss Roll Forming Machine 0.8mm Omega Roof Batten 12m/Min

Ceiling Framing System Truss Roll Forming Machine 0.8mm Omega Roof Batten 12m/Min
