Galvanized Steel Unistrut Channel Roll Forming Machine Z350 2.0-2.5mm P1000
Galvanized Steel Unistrut Channel Roll Forming Machine Z350 2.0-2.5mm P1000
Galvanized Steel Unistrut Channel Roll Forming Machine Z350 2.0-2.5mm P1000
Galvanized Steel Unistrut Channel Roll Forming Machine Z350 2.0-2.5mm P1000
Galvanized Steel Unistrut Channel Roll Forming Machine Z350 2.0-2.5mm P1000
Galvanized Steel Unistrut Channel Roll Forming Machine Z350 2.0-2.5mm P1000
Specifications
Brand Name :
Sussman
Model Number :
RF-ST
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
10 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
Material: thickness :
2.0-2.5mm Galvanized steel
Main Motor Power :
22 KW
Hydraulic Station Power :
4KW
Cutting :
Hydraulic Cutting Cr12mov
Material of Shaft :
45# Advanced Steel
Control system :
PLC Panasonic with touch screen
Decoiler :
Hydraulic decoiler
Punching system :
Punching press
Description

Z350 2.0-2.5mm Thicknkess Galvanized Steel P1000 1-5/8" X 1-5/8" 12 Gauge Steel Unistrut Channel Roll Forming Machine

1. Solar Strut Channel Technical Features:

  • ▲OEM/ODM
  • ▲Product dimensions are 1 5/8" wide x 1 5/8" tall x 12 ga. thick
  • ▲Slotted for 1/2" rod and fasteners
  • ▲Slots are sized for a 1/2" Threaded Rod or Fastener
  • ▲Our P1000T is available in Pre-Galvanized (PG), Unistrut Defender (DF), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Zinc Dichromate (ZD), Stainless Steel (SS or ST) and Aluminum (EA).

Machine Specifications
Weight About 10000kgs
Size About 20m x 1.0m x 1.0m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized steel
Thickness 2.0-2.5mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 22
Diameter of forming rollers shafts 75mm
Working Speed 8-10m/min
Forming rollers material Gr15 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: about 22 kw
Hydraulic station Motor 5.5kw

2. Solar Strut Channel Machine Components

This roll forming machine is powered by a 5.5KW hydraulic station and controlled by a PLC Panasonic with touch screen, allowing for a maximum forming speed of up to 10m/min.

this Strut Roll Forming Machine is equipped with an advanced rolling forming system, allowing for the production of strut channels with superior quality and precision

S.N Equipment name Quantity
1 5T hydraulic un-coiler with coil car 1 set
2 Welder & cutting device 1 set
3 Main roll forming machine 1 unit
4 Punching press machine with servo feeder 1 set
5 Hydraulic cutting 1 set
6 control box 1 set
7 Out tables 2 units

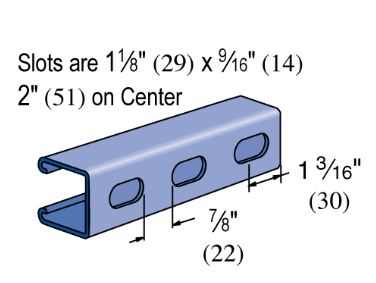

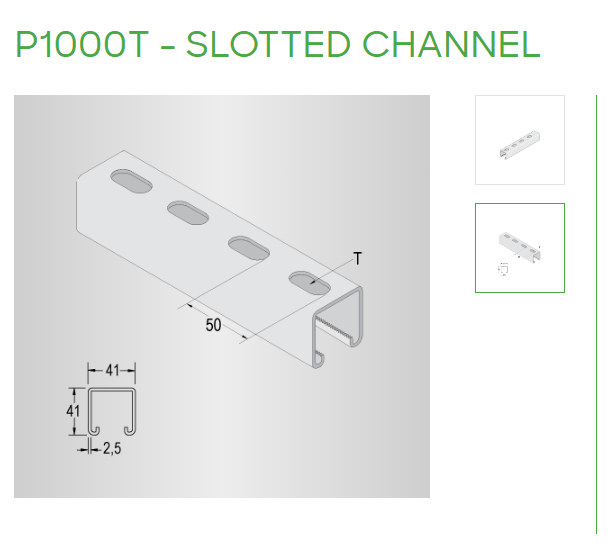

3. Unitstrut channel profile design

12 gauge slotted strut channel P1000T is the original metal framing strut channel and has been used in countless applications for nearly 100 years. Commonly known as 12 gauge standard or deep slotted channel, it is the global standard for strut metal framing. This channel is commonly used for trapeze supports, seismic bracing, ceiling grids, pipe, conduit, duct and cable tray supports, racks, and other general framing

Galvanized Steel Unistrut Channel Roll Forming Machine Z350 2.0-2.5mm P1000

Galvanized Steel Unistrut Channel Roll Forming Machine Z350 2.0-2.5mm P1000

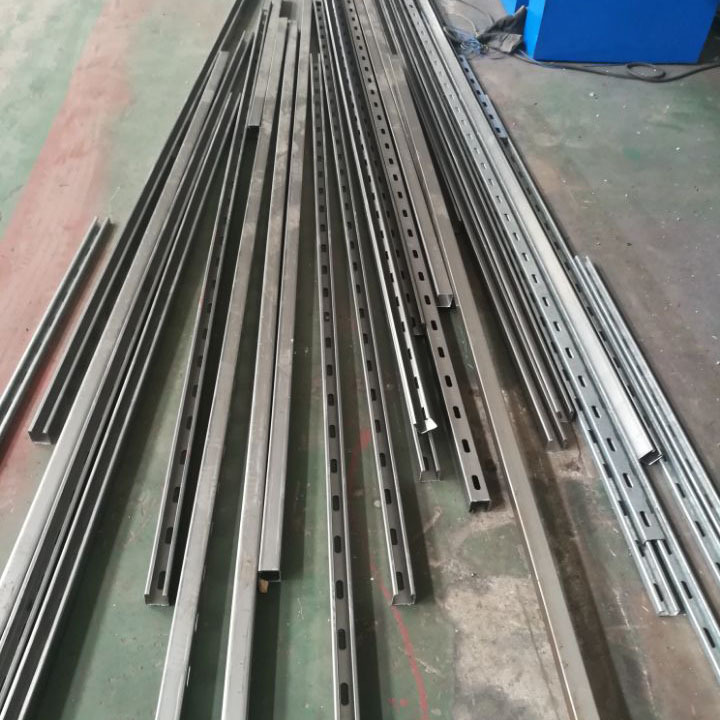

4. Solar Strut Channel Application

1.These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems.

2.Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. S

3.Solar frame panel is used to mount, brace, support, and connect lightweight structural loads in building construction.

Galvanized Steel Unistrut Channel Roll Forming Machine Z350 2.0-2.5mm P1000

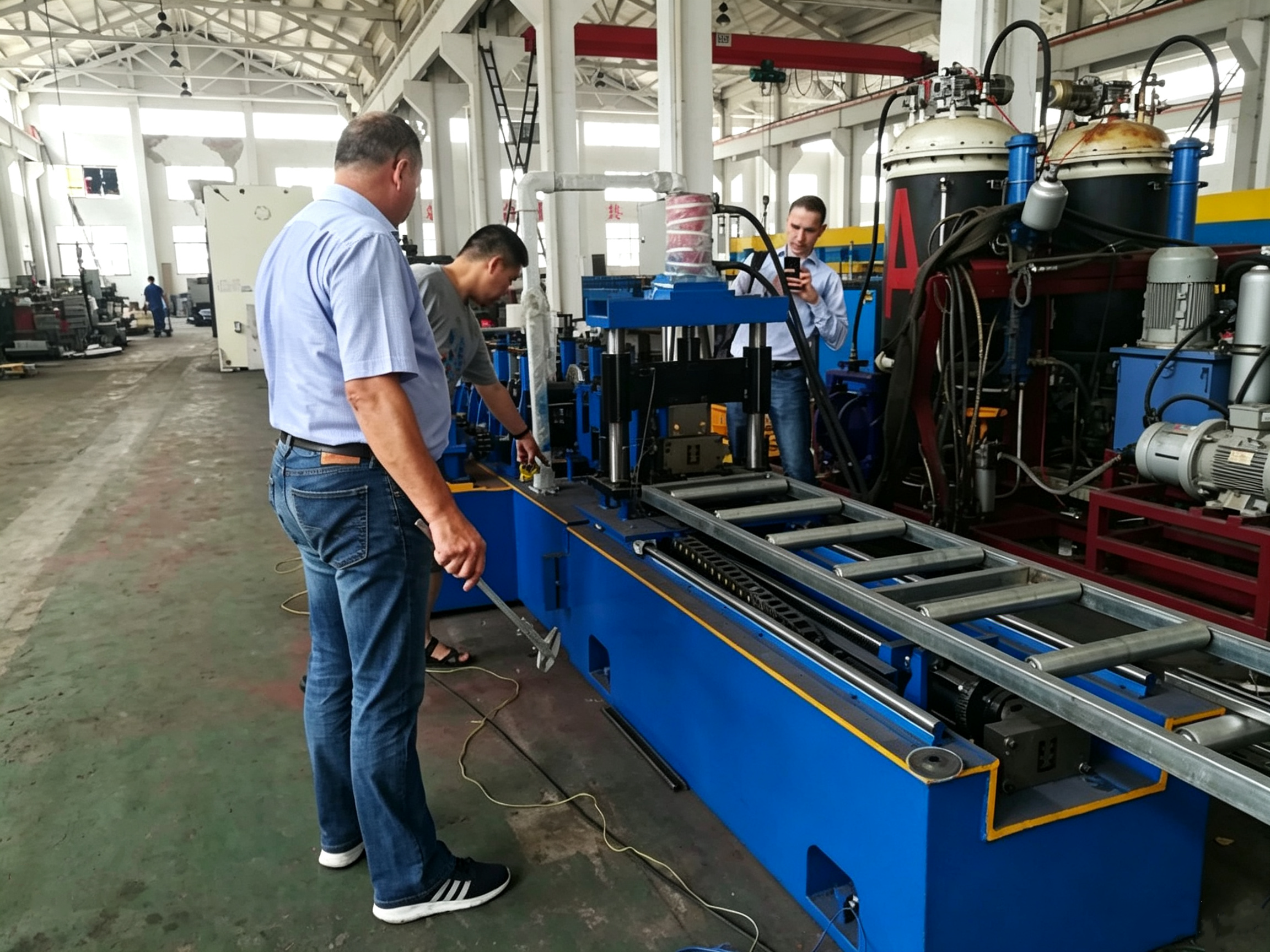

5. Machine photo

Galvanized Steel Unistrut Channel Roll Forming Machine Z350 2.0-2.5mm P1000
