Specifications
Brand Name :
Sussman
Model Number :
SM-OH
Certification :
SGS.CE.ISO
Place of Origin :
China
MOQ :
1 set
Price :
negociate
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per month
Delivery Time :
60days
Packaging Details :
Film and Steel
Hydraulic Station :
5.5KW
material thickness :
0.4-1.2mm galvanized steel
Roller material :
Cr12 Steel with quenching
Dirve system :
Chain drive
Forming speed :
0-12m/min
Machine weight :
about 5 tons
Roller Stations :
About 12 stations forming
Control System :
PLC Delta
Description

0.4 - 1.2mm Galvanized Steel Omega Section Hat Channel Furring Channel Drywall Roll Forming Machine

Furring channel machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.


Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.

The includes decoiler, Feeding and Leveling Device, main forming machine, hydraulic cutting device, the Frequency converter controls the motor speed, the PLC system controls length and quantity automatically. Our produced profile meet ISO, CE , UL standards, and our machine is applied to steel structure, industry or home.

Machine Technical Parameter

Items

Specifications

Material of coil

Material Thickness

0.4-1.2mm

De-coiler

Weight

3 ton manual

Forming system

Rolling Speed

0-12m/min

Roller Stations

About 12 stations forming

Roller Material

Gcr15 Steel with quenching

Shaft Material

45# Steel

Main Motor Power

7.5 kw

Hydraulic cutting Power

4 kw

Cutting
system

Material Of Cutting

CR12 with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Cutting blade

1 set of cutting blade

Electrical control system

Electric Source

380V, 50HZ

Control System

PLC with touch screen Japanese Panasonic and Yaskawa Brand

Weight

About 3.5 tons

Way Of Drive

1 inch single chain

Size of machine

Length 5500mm* Width 600mm* Height 800m




Main Components

Main Components
3 ton passive de-coiler 1 set
Feeding with guide 1 set
Main roll forming machine 1 set
PLC control system 1 unit
Hydraulic station 1 unit
Stop cutting device 1 unit
Safety cover 1 unit
Out table 2 units
Spare parts 1 package



Working Flow of Roll Forming Machine

feeding with guide—Roll forming——Cutting—Products collecting
0.4 - 1.2mm Galvanized Steel Omega Section Hat Channel Furring Channel Drywall Roll Forming Machine

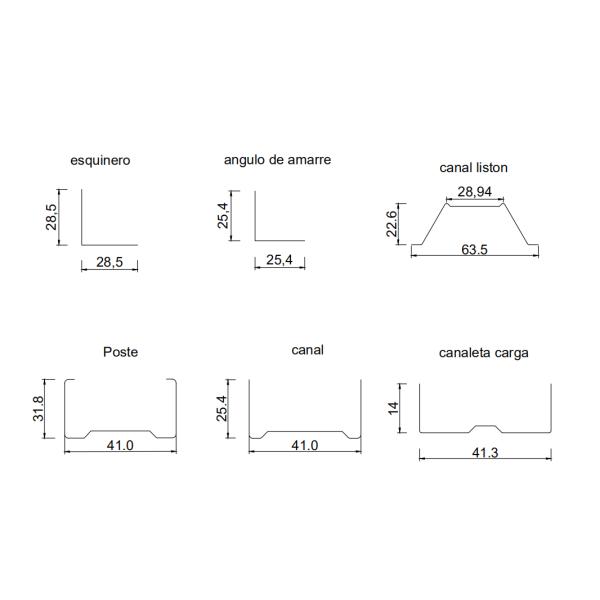

Standard Profile and Drawing Of Product
0.4 - 1.2mm Galvanized Steel Omega Section Hat Channel Furring Channel Drywall Roll Forming Machine



Photo Gallery

0.4 - 1.2mm Galvanized Steel Omega Section Hat Channel Furring Channel Drywall Roll Forming Machine

0.4 - 1.2mm Galvanized Steel Omega Section Hat Channel Furring Channel Drywall Roll Forming Machine

0.4 - 1.2mm Galvanized Steel Omega Section Hat Channel Furring Channel Drywall Roll Forming Machine

Competitive Advantage
1. save space
2. easy installation
3. perfect service
4. excellent quality
5. Operate easily
