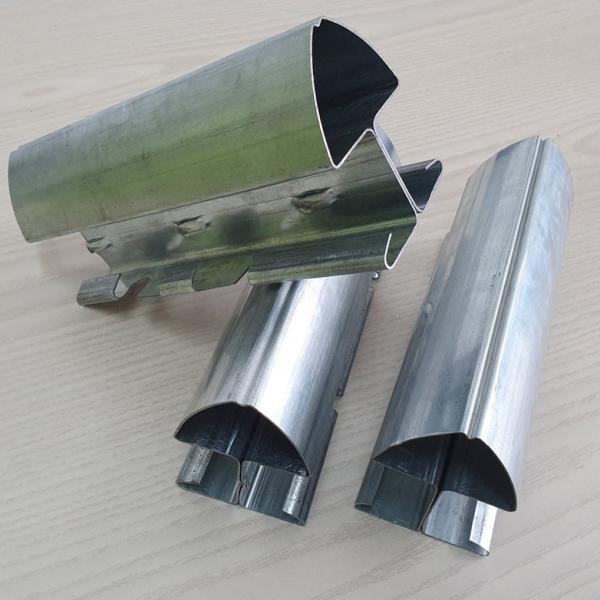

Customized 1.2mm Material Thickness 22 Stations Automatic Peach Type Fence Post Roll Forming Equipment

Description

This post rail roll forming machine produces post rail according to customer's requirements.

Material strips undergoes the process of uncoiling, feeding, roll forming, hydrualic punching&cutting and collecting.

Controlled by PLC control system, operating of the whole machine becomes easy.

Workers only need to be trained how to collectly input related data through the touch screen. All the electic parts of this machine are from famous brands to ensure the perfect performance.

Technical parameter

More details

(1) Manual Ue-coiler

Un-power: manual de-coiler; Max. Capacity: 3T

Suit for coil inner diameter: 460-520mm, suitable coil Max. out diameter: 800mm

Manual power expands the coil inner surface.

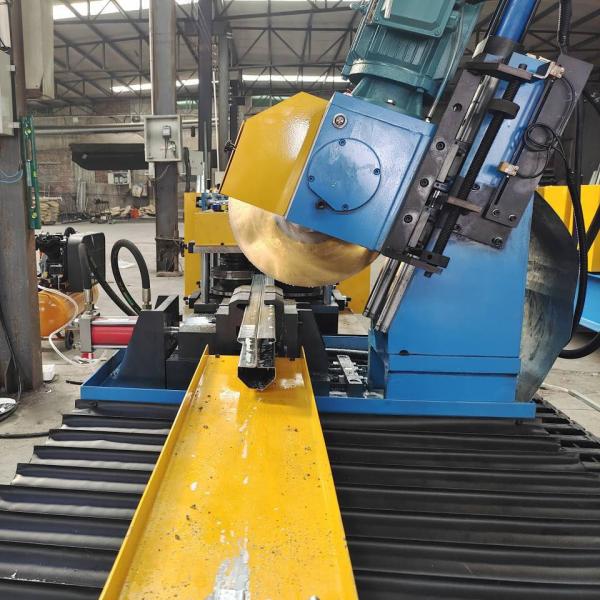

(2) saw Cutting

1) stop cutting;

2) The cutting blade material is Cr12 with quenched treatment.

3) Adopts welded frame for good rigidity.

4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.

5) The power of cutting is provided by hydraulic station.

6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the Product automatically. Finish this action, machine will run again continuously.

(3) PLC Control System

1) This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.

2) Delta converter adjusts speed technology, realize the automatic production.

3) Text screen is input and cancelled the working data.

4) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.

5) Encoder count, having function of count and measuring length.

6) Suitable power voltage: 380V/50HZ/3Phase (can de designed according to buyer’s requirement)

Main Appliation

A fence post machine is a tool used to install fence posts into the ground quickly and efficiently, without the need for manual digging or post setting. It can be used in a variety of applications, including:

Residential fencing - A fence post machine is commonly used to install fences around residential properties, such as backyards, gardens, and driveways.

Agricultural fencing - Farmers use fence post machines to install fencing around their properties, often to keep livestock contained or to protect crops from wildlife.

Commercial fencing - Many businesses use fencing to secure their property or to create outdoor spaces for customers. A fence post machine can be used to install this type of fencing quickly and easily.

Construction sites - Fence post machines are also used on construction sites to create temporary fencing around the perimeter of the site.

In summary, a fence post machine is a versatile tool that can be used in a wide range of applications where the installation of fence posts is required. Its efficiency and speed make it a popular choice for homeowners, farmers, businesses, and construction crews alike

Machine Photo
