Specifications
Brand Name :
Sussman
Model Number :
SM-RG
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
10 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
Forming thickness :
0.43mm Zincalume
Forming speed :
8-15m/min
Main motor power :
7.5Kw
Roller material :
45#forge steel, coated with chrome
Shaft diameter :
70mm, material is 45# forge steel
Weight :
6 tons
Condition :
New
Use :
gutte and roof, soffit, fascia
Description

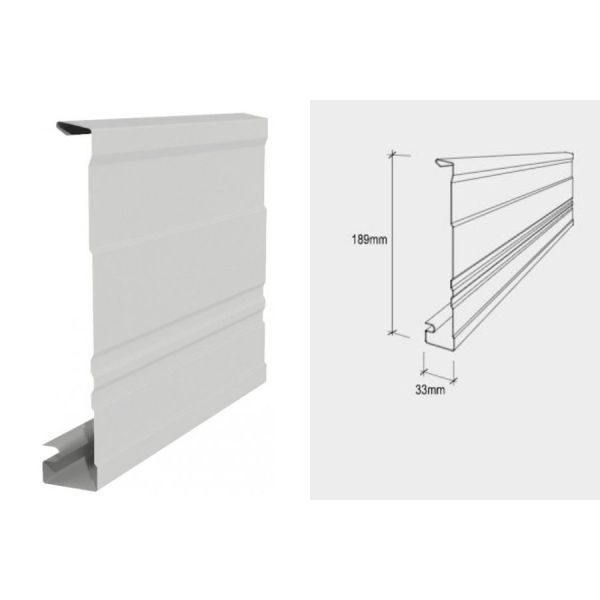

0.43mm Zincalume Fascia Board Roll Forming Machine, Fascia Roof Roll Forming Machine



1. Technical Parameter

No. Item Specification
1 Suitable material

Galvanized Coil, PPGI, Thickness(mm):0.3-0.8mm

Yield strength: 250 - 550MPa
2 Nominal forming speed 8-15m/min
3 Forming station 16
4 Decoiler Manual decoiler
5 Main machine motor China famous brand
6 PLC brand Delta
7 Inverter brand Yaskawa
8 Driving system Chain drive
9 Rollers’ materail Steel #45
10 Station structure Wall plate
11 Cutting system Post-cutting
12 Power supply requirement 380V 50Hz
13 Machine color Blue


2. Flow Chart

Uncoiling – Feeding with guide– Roll forming – Hydraulic cutting – Run-out table
Fascia Board Roof Roll Forming Machine 0.43mm Zincalume Fascia Board

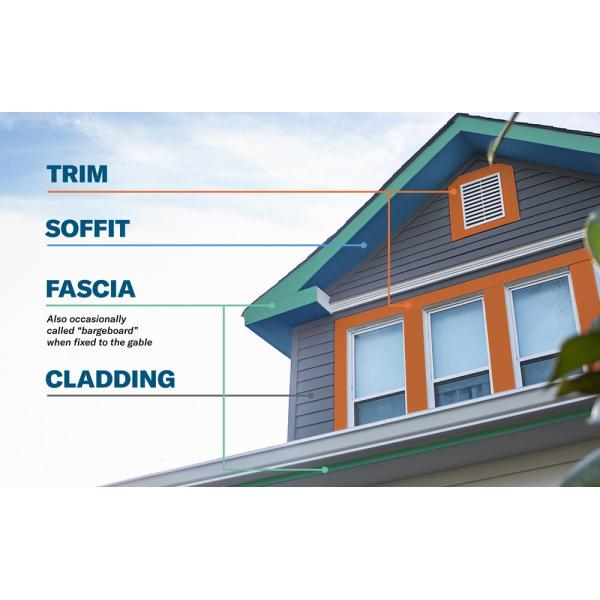

4. Roof Fascia Application

The machine is to make fascia board, a roof fascia is the vertical board (or frieze) that sits directly underneath the roof’s overhang, usually attached to the gutter.

When combined with the soffit (the horizontal board that connects the walls with the fascia), they enclose the roof’s eaves.

Fascia Board Roof Roll Forming Machine 0.43mm Zincalume Fascia Board

Fascia Board Roof Roll Forming Machine 0.43mm Zincalume Fascia Board

Fascia Board Roof Roll Forming Machine 0.43mm Zincalume Fascia Board

5. Fascia Machine Photo

Fascia Board Roof Roll Forming Machine 0.43mm Zincalume Fascia Board
